The main components of the dump trailer for sale include the carriage, the main beam, the vice beam, the lifting cylinder, the cross balance beam and theflip brackets.
Since the loading compartment of the dump trailer for sale can automatically turn over to a certain angle for unloading, it greatly saves unloading time and manpower, shortens the transportation cycle, improves production efficiency, and reduces transportation costs. It is a commonly used special transportation vehicle. It plays a huge role in industrial transportation.
The frame design of the rear dump semi trailer is reasonable, the technology is advanced, the operation is convenient, the height of the box is various, and the loading space is large. It is suitable for loading and unloading of bulk materials such as coal, ore, building materials, earthwork, sand and gravel. And tri axle dump trailer is one of most advantages products in CIMC.

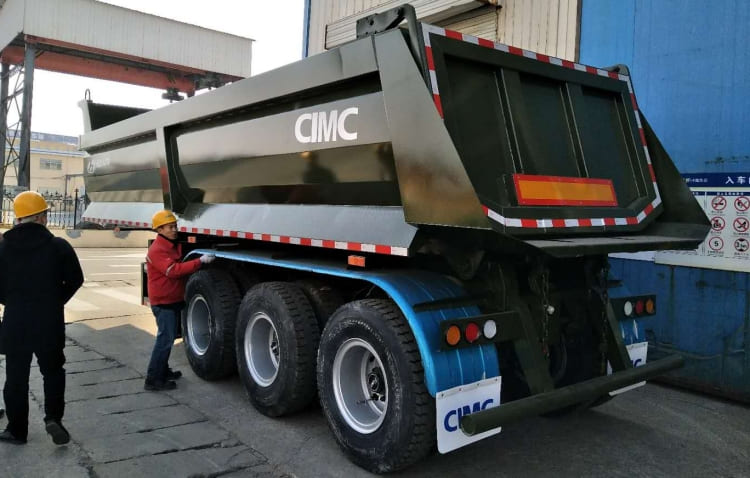

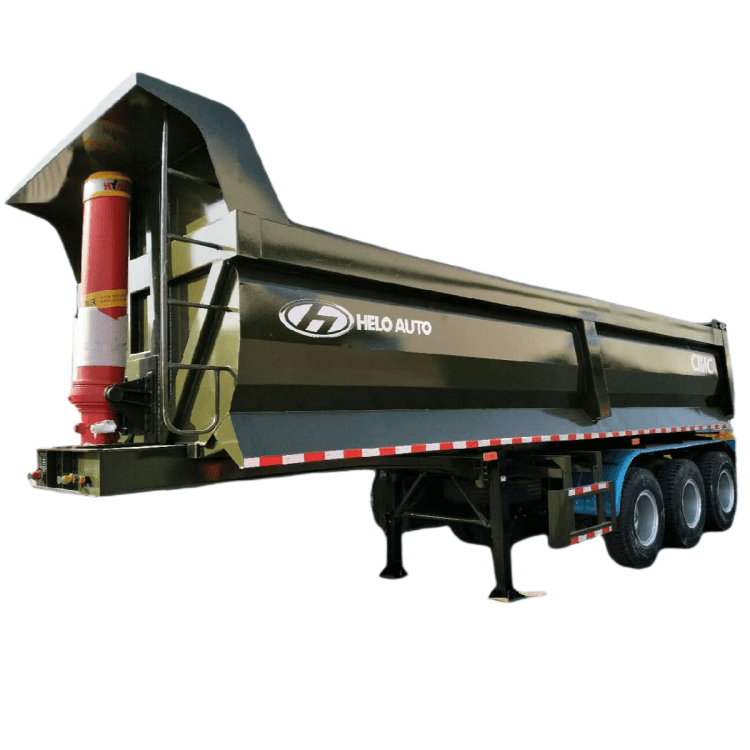

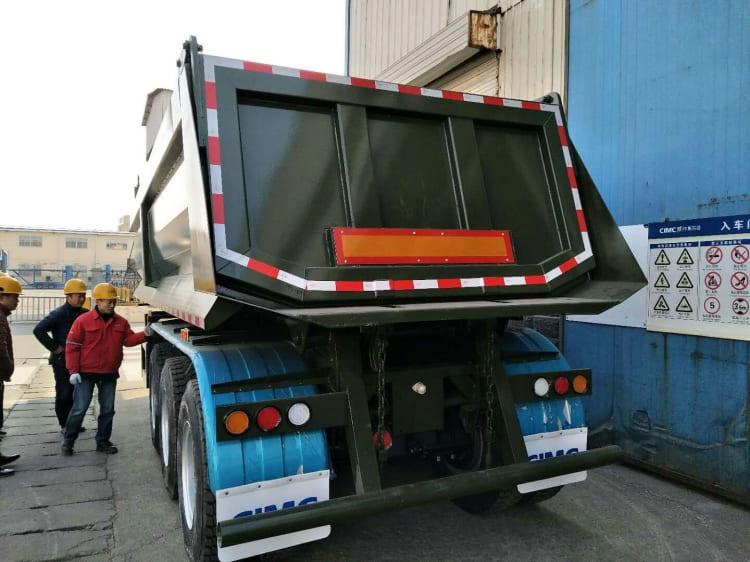

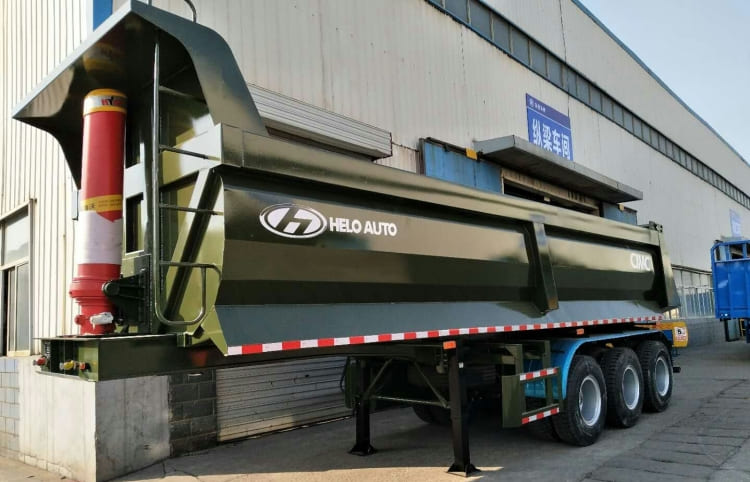

Tri Axle Rear Dump Semi Truck Trailer for Sale Prices in Tanzania
Tri Axle Rear Dump Semi Truck Trailer for Sale Prices in Tanzania
Tri Axle Rear Dump Semi Truck Trailer for Sale Prices in Tanzania
Dimension: 8500mmx2500mm x3950mm ( inside dimension )
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: High strength steel
Bottom Platform: 4 thick checkered plate
Side wall thickness: 4mm
Total volume(m³): 35m³
End plate: 8mm
Hydraulic cylinder: Heavy-duty cylinder
Lifting System: Full set of HYVA lifting cylinder
Flip Bracket: 4 units
Axle: 3 axle, 13T/16T, FUWA / BPW Brand
Rim: 8.0-20 or 9.00-20
Tire: 12 unit, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Vice beam: 4 units
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Socket: 7-pin socket
Paint: polyurethane paint
1. The back flip produced by CIMC adopts the most advanced design, and the height of the cargo table is only about 135 cm, which is 30 cm lower than the height of 165 cm in other homes. This makes the center of gravity of the rear turning lower, more stable when unloading, and can better ensure the safety of users.
2. The girder adopts a double vertical plate structure, which has stronger bearing capacity and more stable lifting. It will not cause the dump trailer for sale to roll over due to the deformation of the girder. Under the premise of ensuring the safety of the driver, the service life of the rear dump semi trailer is greatly increased.
3. The heavy-duty oil cylinder 216 model is adopted, which has a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and the lifting speed is fast.
4. A total of 4 vice beams can make the bottom of the box have better bearing capacity and will not be easily deformed. The lattice structure design of the side door makes the side door stronger, which greatly improves the load capacity of the back flip and prolongs the service life.
