CIMC as a professional tipper trailer manufacturers can provides you different size of the new tipper trailers for sale, such as 2/3/4 axles and the load capacity is 30-100 tons. According to different configurations, different tipper semi trailer.
The main components of the tipper trailer including main beam, hydraulic cylinder, which control lift by controlling hydraulic oil flow and pressure, and the box usually 1.3-1.4 meters and can increase the height of the box to increase the capacity, vice beam, cross balance beam, flip bracket and a back door.
Tipper trailer for sale plays a very important role in modern industrial transportation. New tipper trailers for sale will help you handle and unload bulk goods in a very simple and efficient way, which can greatly improve your work efficiency when loading and unloading goods and reduce your production costs. 2 axle tipper semi trailer is the most advantages model in CIMC.

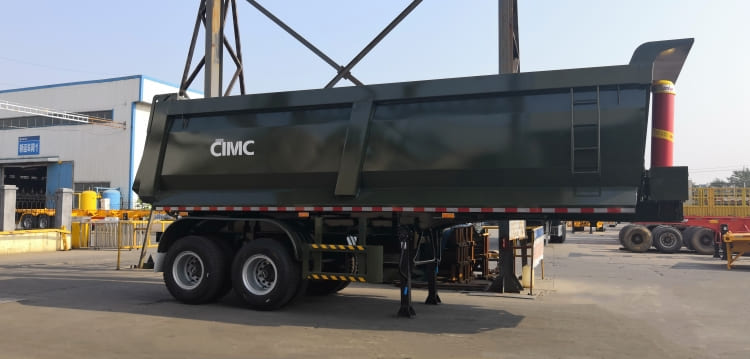

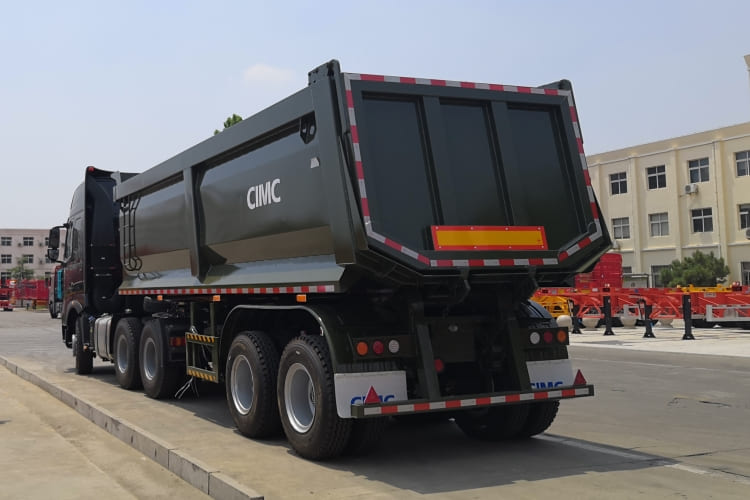

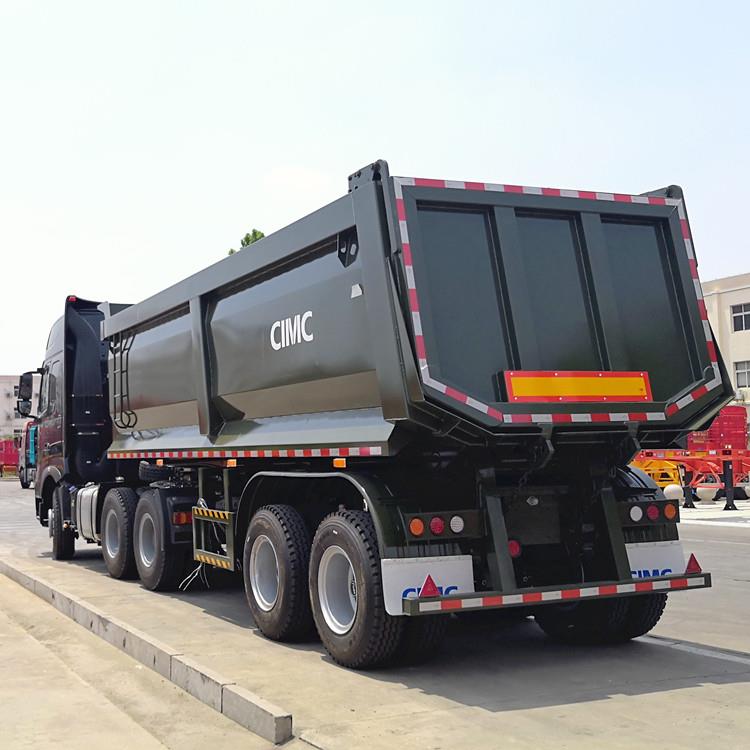

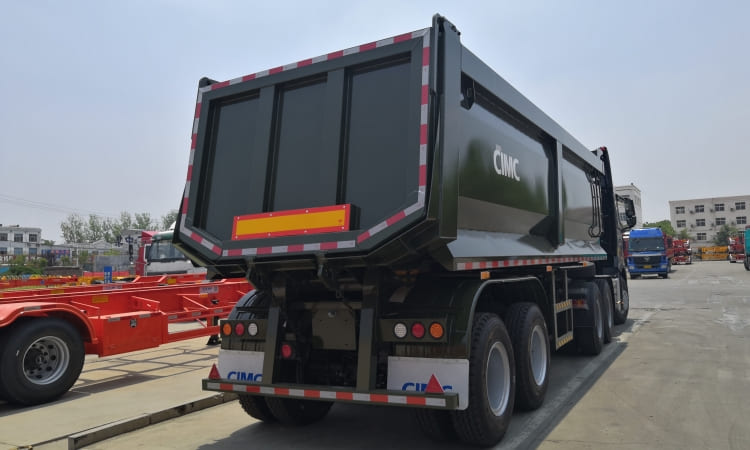

New 2 Axle Tipper Semi Trailers for Sale Manufacturers in Mozambique
New 2 Axle Tipper Semi Trailers for Sale Manufacturers in Mozambique
New 2 Axle Tipper Semi Trailers for Sale Manufacturers in Mozambique
Dimension: 8500mmx2500mm x3950mm ( inside dimension )
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: High strength steel
Bottom Platform: 4 thick checkered plate
Side wall thickness: 4mm
Total volume(m³): 35m³
End plate: 8mm
Hydraulic cylinder: Heavy-duty cylinder
Lifting System: Full set of HYVA lifting cylinder
Flip Bracket: 4 units
Axle: 2 axle, 13T/16T, FUWA / BPW Brand
Rim: 8.0-20 or 9.00-20
Tire: 8 unit, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Vice beam: 4 units
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Socket: 7-pin socket
Paint: polyurethane paint
1. Tipper trailer for sale are often used in conjunction with construction machinery such as excavators and loaders, and are mainly used for the loading, unloading and transportation of earthwork, gravel, and bulk materials. Including the transshipment and unloading of bulk containers such as coal, iron ore, corn, wheat, feed and other containers.
2. CIMC new tipper trailers for sale use 4 units flip brackets, which can make the tipper semi trailer more stable when unloading the cargo.
3. The main beam of the tipper semi trailer adopts a double-plate design, and the material is HG60 high-strength steel, which has a stronger bearing capacity; it is not easy to be damaged and greatly prolongs the service life of 2 axle tipper semi trailer.
4. Our new tipper trailers for sale have advanced welding technology, perfect and mature production lines, scientific design, high safety factor and low after-sales rate, and are well received by customers.
