Name: 3 axle open top semi trailer
Application: to carry bulk cargo
Loading capacity: 50 tons
Axles: 3 *13 tons
Advantage: customized produce
CIMC open top semi trailer is one of the most popular and sought-for means of transport for diverse cargo( like pipes, plates, boards, long non-divisible load, reels and coils, plates, metal, bricks, cement bags and other construction materials ) which can be carried in any weather and road conditions.
CIMC trailers feature durability in off-road conditions, they are cross-functional for the carriage of commercial and industrial cargo up to 50 tons on roads of any category. 3 axle 50 tons open top trailer, it is a special options for the reliable fixation of cargo: hooks, clamps or container locks. Comfortable operation is ensured by drop sides and telescopic bolsters.

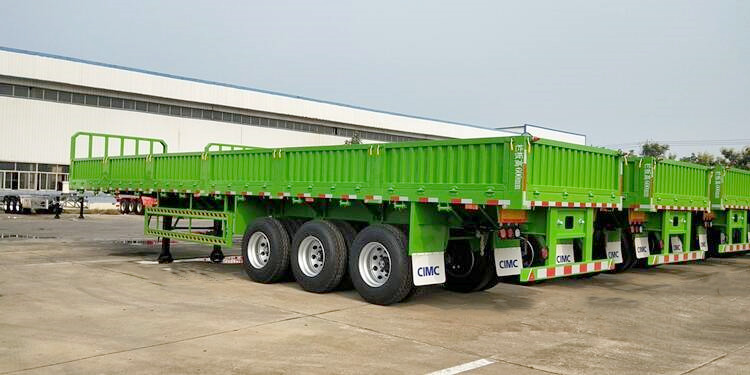

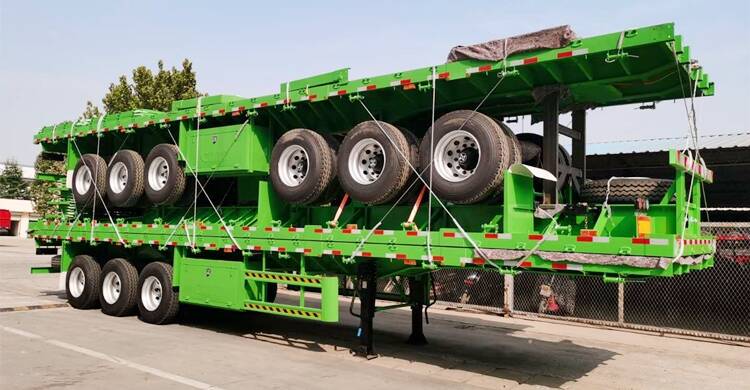

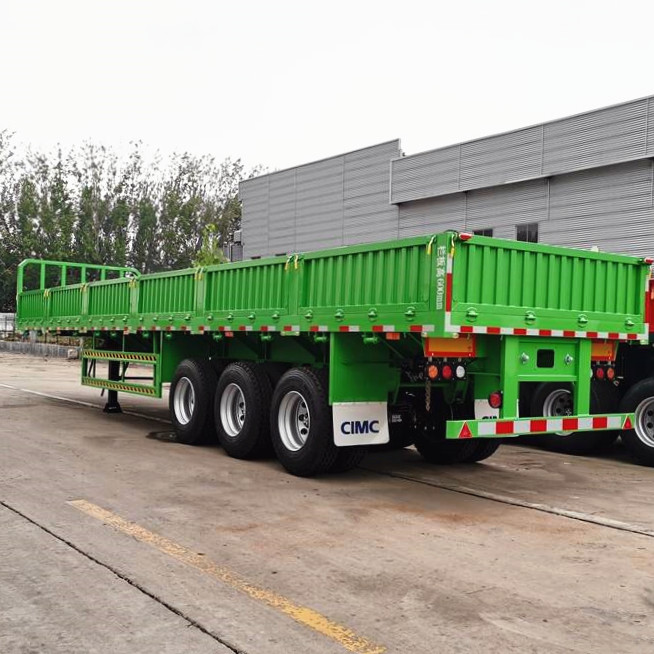

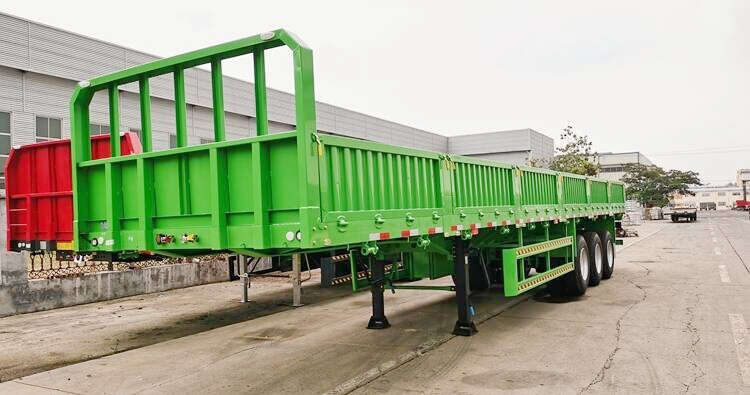

3 Axle 50 Tons High Side Wall Trailer for Sale
3 Axle 50 Tons High Side Wall Trailer for Sale
3 Axle 50 Tons High Side Wall Trailer for Sale
1> We adopt premium steel material, advanced technology and strict production to our flat bed trailer. The trailer chassis automatic submerged arc welding to ensure the welding seal solid.
2> The floor is covered with corrugated sheet metal.
3> The front is reinforced and ensures driver's safety should cargo set off after hard braking.
4> Good brake effects. Axles are equipped with WABCO emergency brake valve also dual-brake chambers also widen brake pads.
L*W: 12500mm*2500mm
Sidewall Height: 600mm
Max. Payload: <50T
Application: Coal/Cargo/Containers Loading
Material: Q345B Steel
Bottom Platform: 3mm-thick checkered plate
King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Support leg: JOST brand
Suspension: Airbag / Mechanical / bogie suspension
Axles: FUWA/BPW/CIMC/other
Tires: 12.00R22.5/315 80R22.5(Specially designed and for oversea markets)
Brake System: WABCO
Electrical System: 24-volt lighting system
