Product: 3 Axle semi trailer with Side wall
Type: semi trailer
Axles: 3 * 13 tons axles
Load weight: 40 tons
Application: to carry bulk cargo , containers , bagged cement
The CIMC 3 axle sidewall trailer are widely used to transport container, pipe , steel , lumber , heavy equipment , and any other item that would be difficult to load into the back of a trailer.
The 3 axle sidewall trailer is mainly used for transporting steel, timber, stone and other cargo goods, The advantage of the sidewall trailer is that it can carry goods like super long, super wide and super high.it have wide applicability.
Details of 3 Axle semi trailer with Side wall

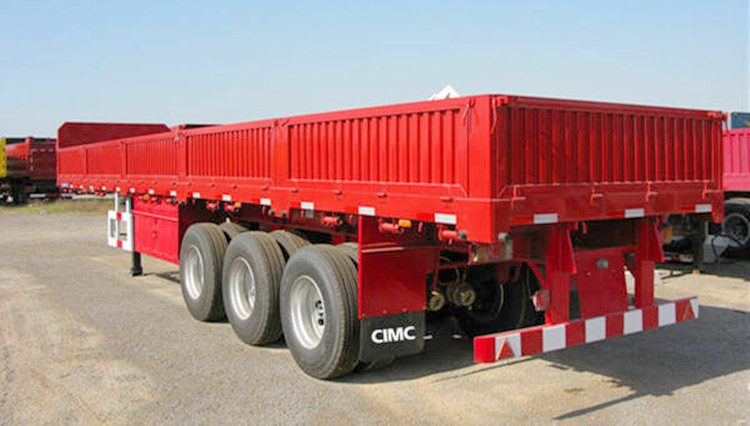

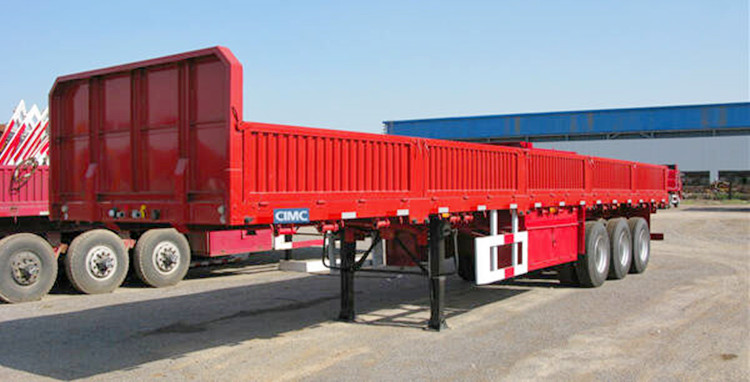

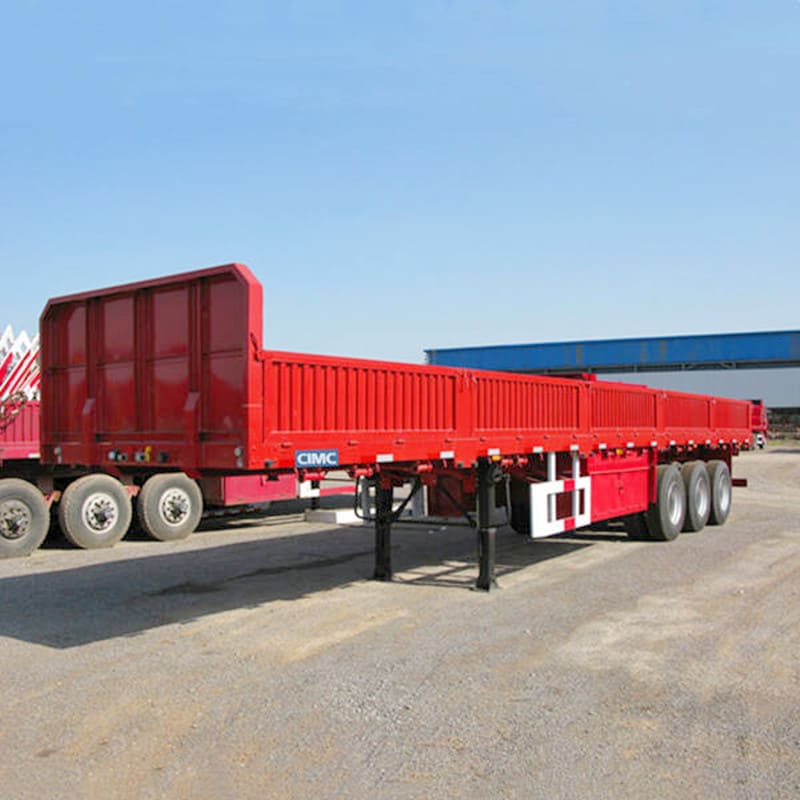

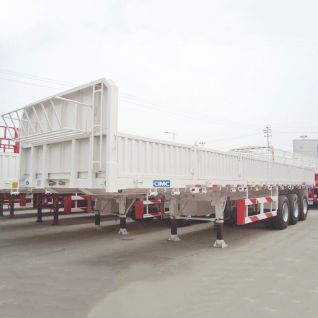

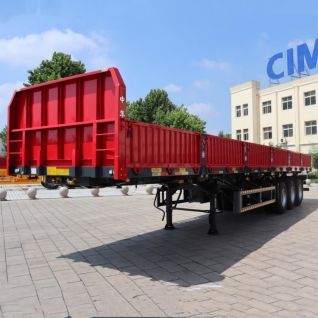

CIMC 3 Axle 40 Ton Semi Trailer with Side Wall for Sale
CIMC 3 Axle 40 Ton Semi Trailer with Side Wall for Sale
1> Light tare weight design
2> Large load capacity
3>Thicken side wall plates ensures the cargo box never out of shape

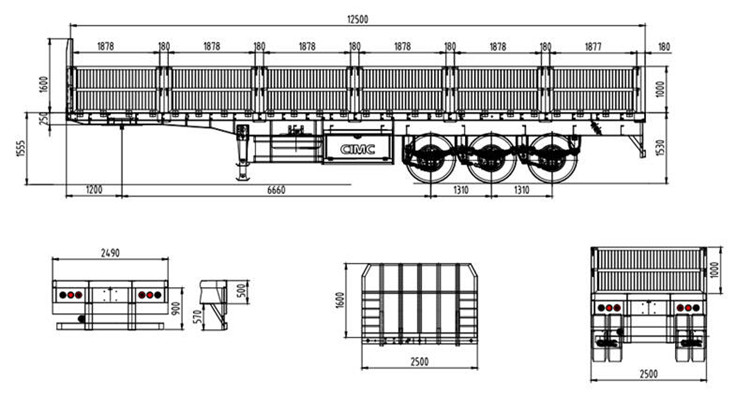

L*W: 12500mm*2500mm
Sidewall Height: 600mm
Max. Payload: <50T
Application: Coal/Cargo/Containers Loading
Material: Q345B Steel
Bottom Platform: 3mm-thick checkered plate
King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Support leg: JOST brand
Suspension: Airbag / Mechanical / bogie suspension
Axles: FUWA/BPW/CIMC/other
Tires: 12.00R22.5/315 80R22.5(Specially designed and for oversea markets)
Brake System: WABCO
Electrical System: 24-volt lighting system
