Brand:CIMC Aluminum alloy liquid tank trailer
Dimensions:11800 mm(Length) x 2500 mm(Length) x3800mm(Height)
Tank Capacity:45,000 liters
Tank Material:Aluminum alloy
Compartments:1 to 7 compartments, based on customer needs
CIMC focus on tank trailer ,is the earliest carbon steel tank trailer producer and the first qualified aluminum ally tank trailer producer in Shandong province , the leading products of which include Wanshida aluminum alloy tank trailer ,stainless steel tank trailer ,carbon steel tank trailer and powder tank trailer

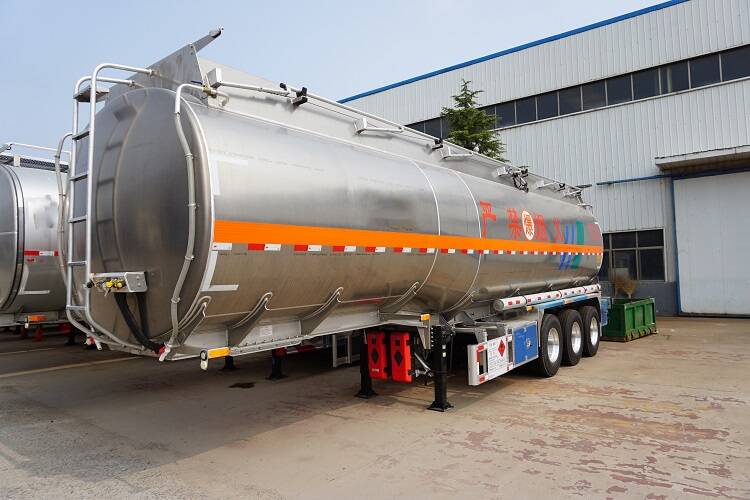

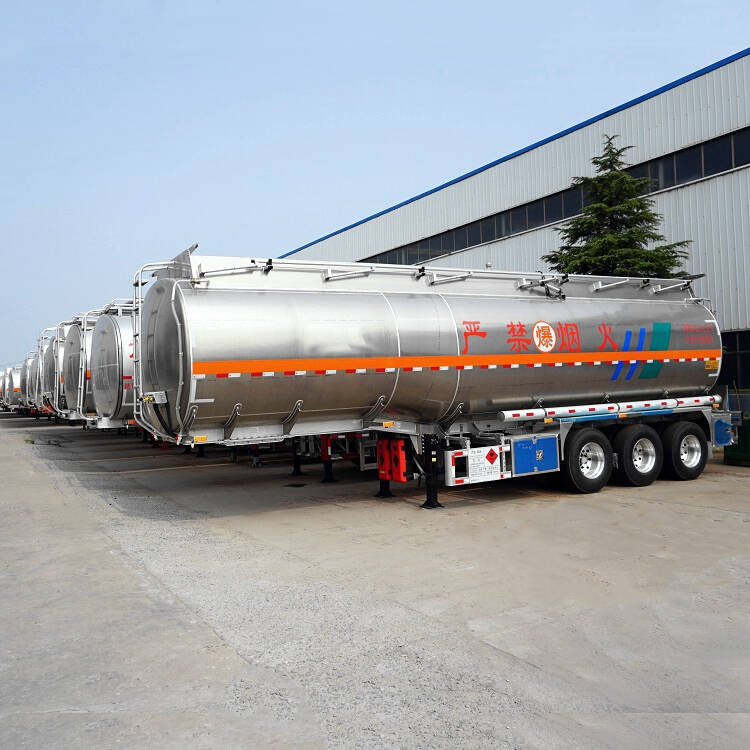

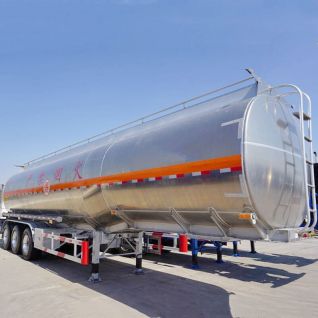

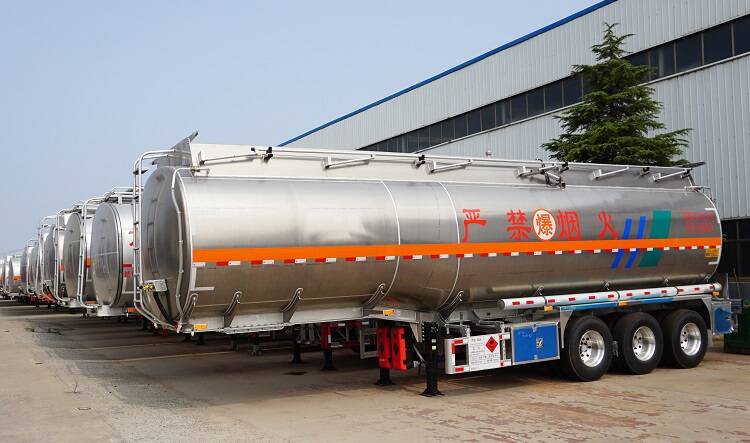

CIMC 3 axles Aluminum alloy fuel tanker trailers 45cbm
Aluminum crude oil tank trailer for sale
- The tank is welded by TIG welder ,the qualified radiographic inspection rate of which is 100%
- The dash board of head is of expansion structure ,high strength and the thickness of plate can meet international standard
- The loading and unloading system is designed according to European standard ,beng safe ,environmental friendly
- The cross section of tank is international standard small circle arc so that the stress of tank is more uniform and stronger
- The tank which is of gooseneck structure is low in center of gravity and excellent in stability
- The heel protection facility is installed on top of tank to improve safety of vehicle
- The ladder an roof walkway are designed for skid resistance .
- The back protection material is high-strength steel ,the distance of which is large to prevent from drilling and collision in order to improve -safety of vehicle

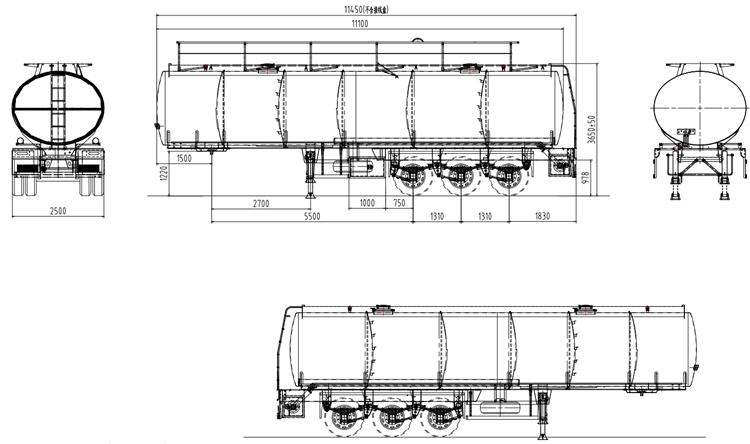

Dimension: 11800mm*2500mm*3800mm(the exact size depends on the final design)
Volume: 45000liters
Application: transport Fuel, Oil, Diesel
Tank body:
Material: Aluminum alloy
Tank body and separate compartment plate: 6mm
Compartments: Optional
Manhole cover: Aluminum alloy API manhole cover 500mm (diameter)
Discharge valve: Diameter is 3 or 4 inch
Bottom valve: Aluminum API Pneumatic Bottom Valve
Tanker body test: Hydrostatic test to 5 psi (35 Kpa) on each compartment
Chassis:
Axles: 3 units, FUWA/BPW/CIMC/other
Landing Gear: JOST brand
King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Suspension: Mechanical suspension or air suspension
Brake System: WABCO
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
