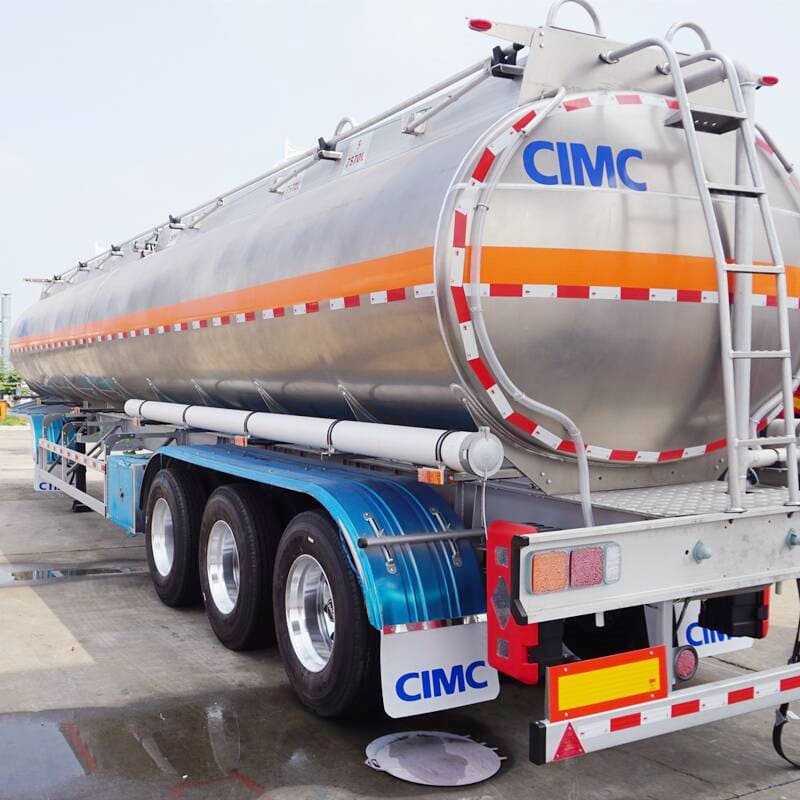

CIMC Aluminum Fuel Tanker Trailer

CIMC Aluminum Fuel Tanker Trailer:

Aluminum alloy tank trucks refer to special vehicles for transporting gasoline, diesel, kerosene, lubricants and other liquid fuels. It is the most used vehicle among tank trucks. According to its function, it is divided into two types: fuel truck and fuel truck. The oil truck is used to transport liquid oil. It is mainly composed of oil tank, filling port, oil drain valve, manhole cover, oil hose, grounding chain, etc.; and the fuel truck has the function of a mobile pump station in addition to the function of a fuel truck. It also added a pump oil system, a metering system and a control device.

CIMC 3 Axle Aluminum Fuel Tanker Trailer

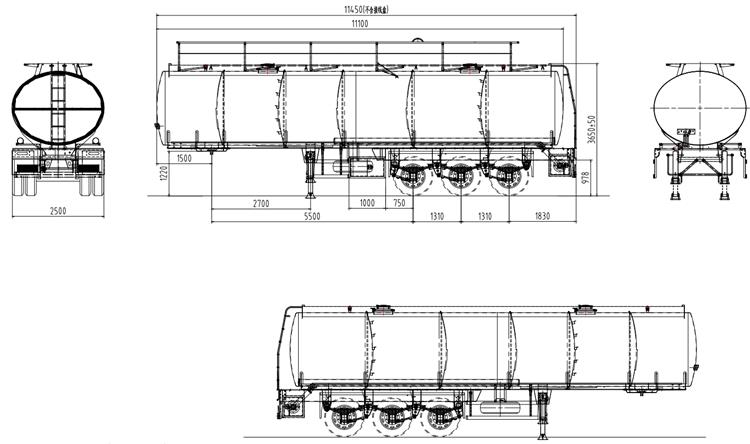

CIMC Tri Axle 40000L Aluminum Fuel Tanker Trailer for Sale

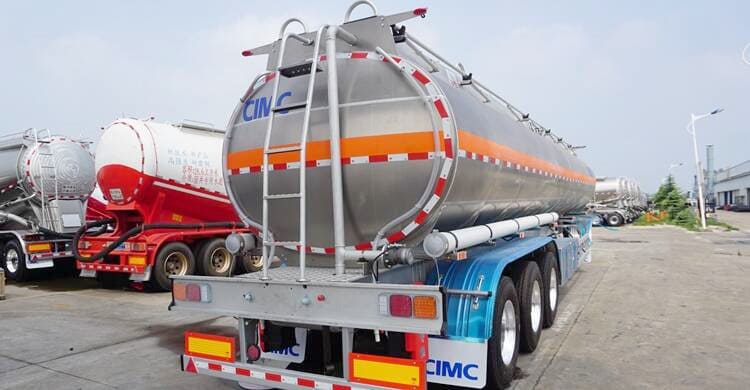

CIMC Tri Axle 40000L Aluminum Fuel Tanker Trailer for Sale

Safety configuration of fuel tank truck:

1. Aluminum Alloy Oil Tanker trailer must be equipped with eye-catching warning signs. Safety notices, danger indicator lights, etc. must be painted on the tanks of dangerous goods transport vehicles for identification by other personnel.

2. Petrol tanker for sale must be equipped with electrostatic belts. The static conductive rubber tow belt is installed on the bottom of the vehicle. It can introduce static electricity to the ground, keep the tank at zero potential, and prevent the generation of static sparks.

3. Fuel tanker trailers must be equipped with emergency cut-off devices. The emergency cut-off device is a safety device installed at the oil interface of the tank truck. When the pipeline ruptures or other causes of medium leakage, the medium flow rate in the pipe increases, and the valve will immediately close itself to perform emergency leakage stop to prevent a large amount of medium leakage To avoid or reduce accidents.

4. The speed of dangerous goods transport vehicles must be limited. Because the driving speed of the dangerous goods transport vehicle is too high, the risk factor is greatly increased. The speed of the dangerous goods transport vehicle is generally controlled within 80 km/h.

Specification:

Landing Gear: JOST

King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Suspension: Mechanical suspension or air suspension

Axles: 12 units, FUWA/BPW/CIMC/other

Braking System: WABCO

Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand you can choose

Light: LED Light

Tank Body: Standard Lock Box and Breathing Velve
