Tri-axle 50 Tons Animal Transport Fences Truck Trailer

Fence Trailer Description :

Fence truck trailer for sale is a common semi trailer, and fence trailer is a semi trailer designed with a fence structure for the cargo part. Mainly used for the transportation of agricultural and sideline products and other light foam goods. It is a consignment station and an indispensable means of transportation in express companies.

The main use of most of the tri-axle fences trailer 50 tons is to transport agricultural and sideline products, such as fruits, vegetables, animals, and some daily necessities and other types of light foam goods that we use in our lives. However, for power engineering and communication engineering, the fence truck trailer can also play a very good usability.

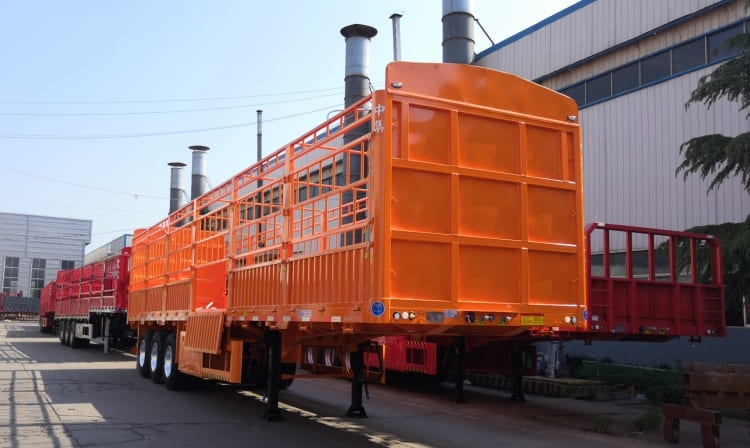

Tri-axle Anima Transport Fences Truck Trailer 50 Tons for Sale in Port Sudan

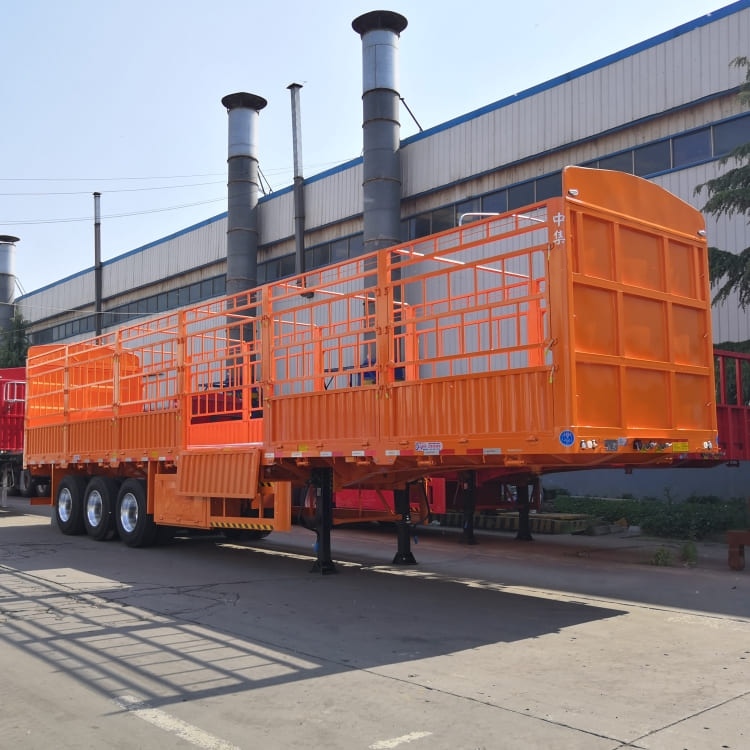

Tri-axle Anima Transport Fences Truck Trailer 50 Tons for Sale in Port Sudan

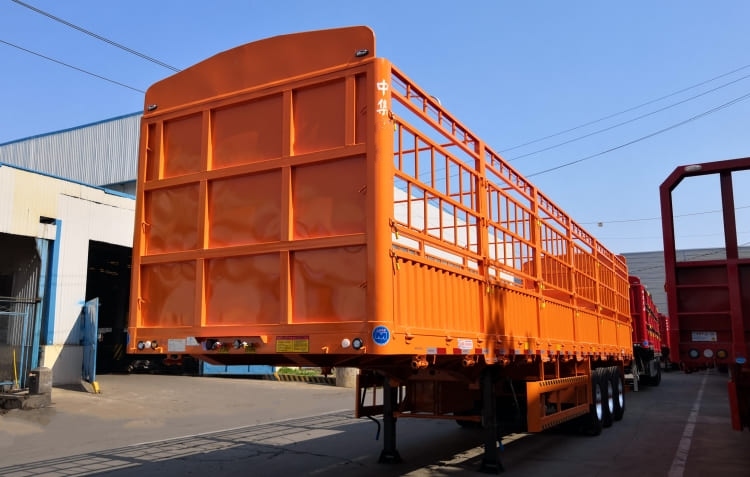

Tri-axle Anima Transport Fences Truck Trailer 50 Tons for Sale in Port Sudan

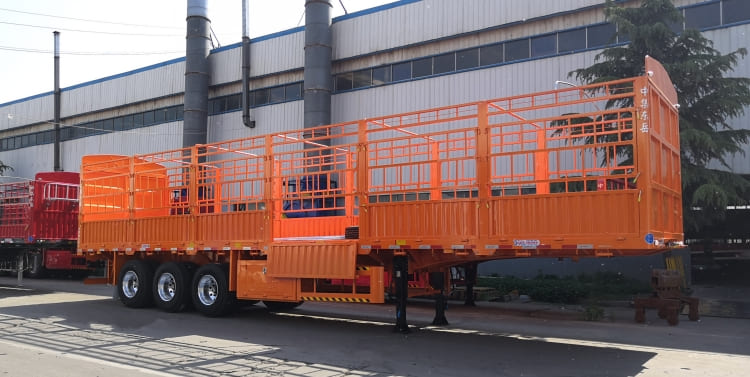

Tri-axle Anima Transport Fences Truck Trailer 50 Tons for Sale in Port Sudan

Specification of Fence Truck Trailer :

Model: tri-axle fences trailer 50 tons

Transport: Agricultural and sideline products and some bulk cargo

Loading capacity(ton): 60-80T

Overall dimension: 13000mm * 2600mm *3200mm

Platform: 3mm-thick checkered plate

Axles: 3 axles , 13t/16 ton, 16 tons breaking lining

Suspension: Heavy duty mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Tire: 12 units

Twist Locks: 4,8,12 sets (lifting or screw type)

ABS: Optional

Langing gear: JOST/FUWA

Brake system: WABCO brand

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

LED：LED lights

Tool Box: 1  PCS

Painting: polyurethane paint

Shipping method: By bulk cargo carrier, RORO or 40HQ container

Animal Transport Trailer Advantages :

1. The design process of the fence trailer model and the fence structure is simple and the design is reasonable, which can fully reduce the weight of the carriage under the condition of load, the structure is simple and applicable, and the disassembly is convenient, which reduces the investment cost for the user and creates more profit value.

2. The animal transport trailer frame adopts a space frame structure formed by welding longitudinal beams and integral penetrating beams. It can balance the strength, stiffness and toughness of the frame, with strong bearing capacity and no deformation.

3. The fence truck trailer for sale frame is a beam-through structure, the longitudinal beam is welded by automatic submerged arc welding, and the transverse beam penetrates into the longitudinal beam and is welded as a whole.

4. A new type of suspension system is adopted, with high strength, strong impact resistance, balanced load on each axle, and reasonable design of the angle of the system tie rod. In the process of frequent bumps, the friction between the tire and the ground is reduced, and the tire wear is effectively reduced.
