CIMC 3 Axle Aluminum Fuel Tanker

Product Description:

The palm oil fuel tanker body is made of aluminium alloy . It could effectively the purity of palm oil . And can meet the transportation stands of food grade . he use of aluminum alloy tanker can not only greatly reduce vehicle weight, improve transportation efficiency, but also prolong the service life, and extend the steel tank truck for 5-10 years. The profits generated during the whole life cycle are very impressive.

CIMC trailer gives its customers wide range of tanker trailers assortment and find the best solution according to customer road regulations .

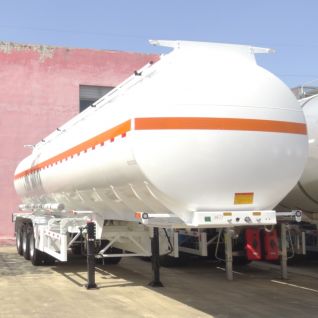

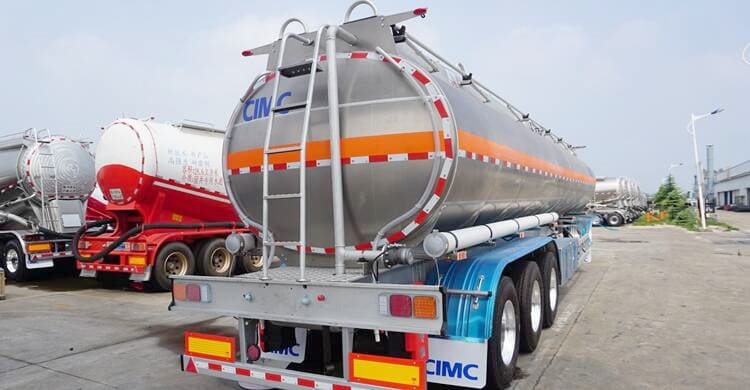

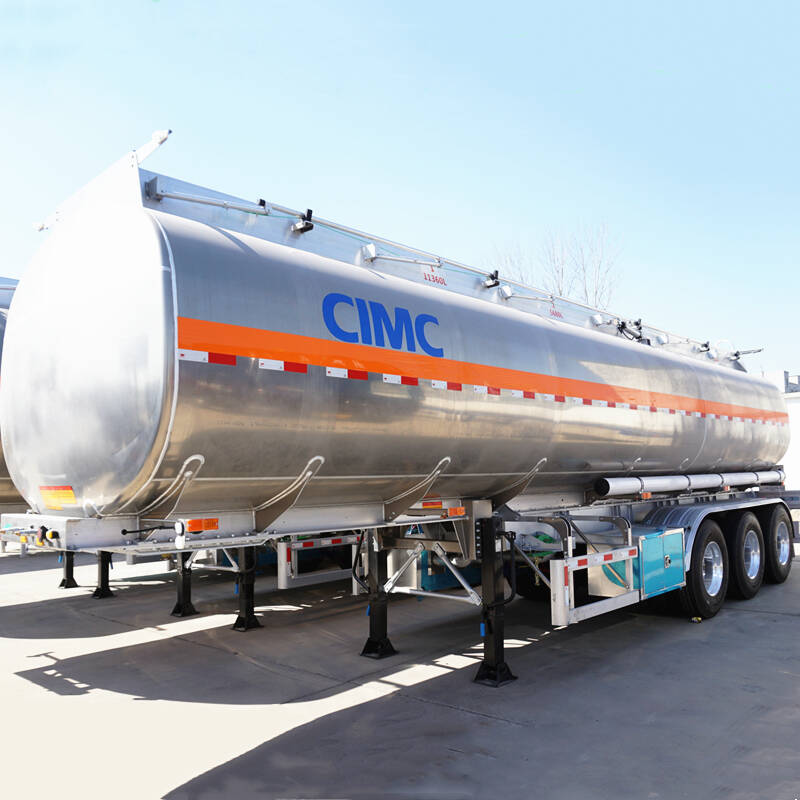

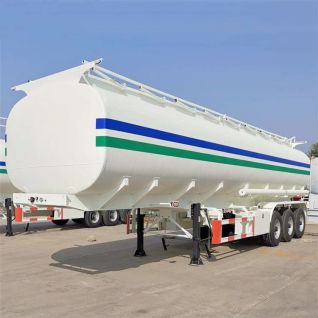

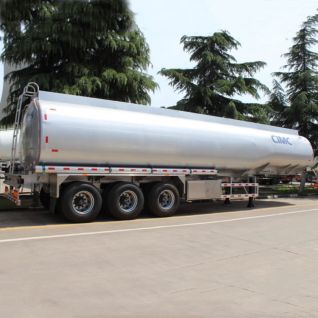

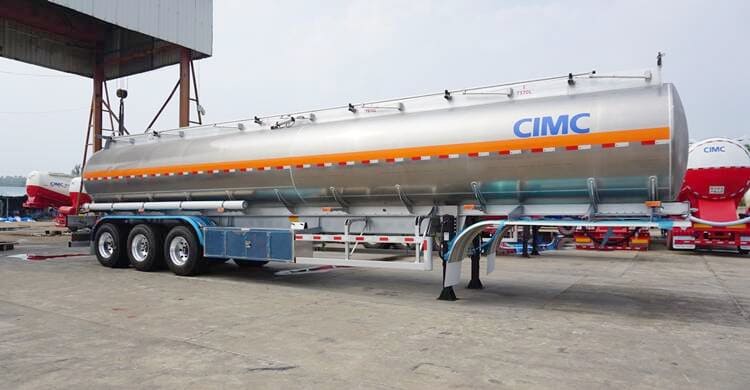

More Pictures of palm oil tanker trailer

CIMC fuel palm oil transfer tank semi trailer

Specification:

Dimension: 11500mm*2500mm*3700mm(the exact size depends on the final design)

Volume: 40000liters

Application:  transport Fuel, Oil, Diesel

Tank body:

Material: Aluminum alloy

Tank body and separate compartment plate:  6mm

Compartments: Optional

Manhole cover: Aluminum alloy API manhole cover 500mm (diameter)

Discharge valve: Diameter is 3 or 4 inch

Bottom valve: Aluminum  API Pneumatic Bottom Valve

Tanker body test: Hydrostatic test to 5 psi (35 Kpa) on each compartment

Chassis:

Axles: 3 units, FUWA/BPW/CIMC/other

Landing Gear: JOST brand

King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Suspension: Mechanical suspension or air suspension

Brake System: WABCO

Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
