Product: CIMC detachable gooseneck trailer
Load capacity: 100 tons
Axles: 4 axles
Dimension: Customized
Application: to carry crane, excavator, crawler loader or other machinery
CIMC 4 axle lowboy trailer has a large carrying capacity and can load up to 100 tons of machinery or cargo.

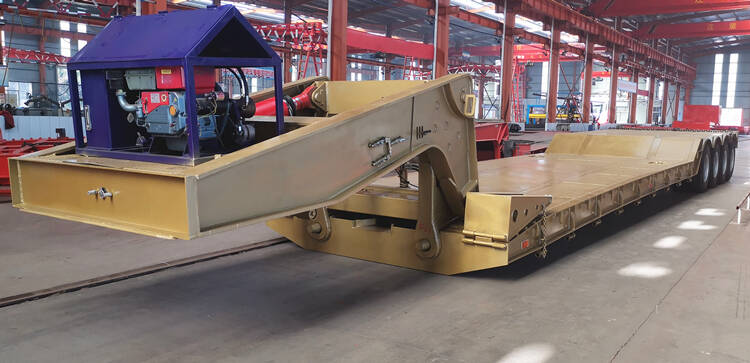

Detachable gooseneck trailer can separate the gooseneck from the trailer, and achieve contact between the front end of the vehicle and the ground. After the cargo or equipment is loaded, the lowboy trailer is restored to the original transportation state in time for transportation.
Loading method for detachable gooseneck trailer: cargo is loaded from the front. Detachable gooseneck cargo table is very low, so the stability and security are very good.

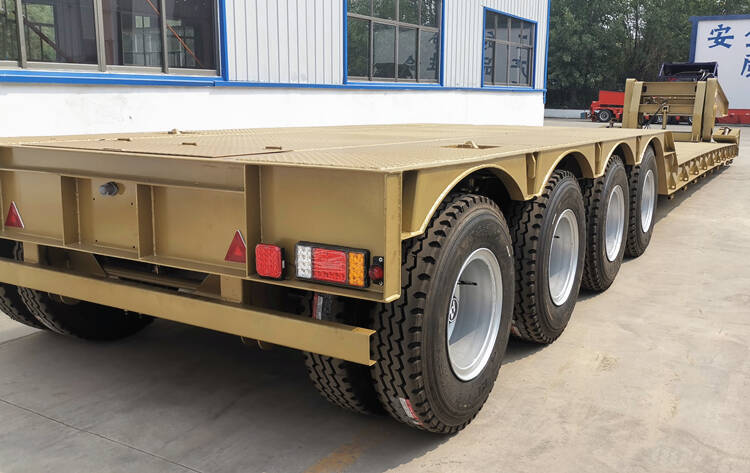

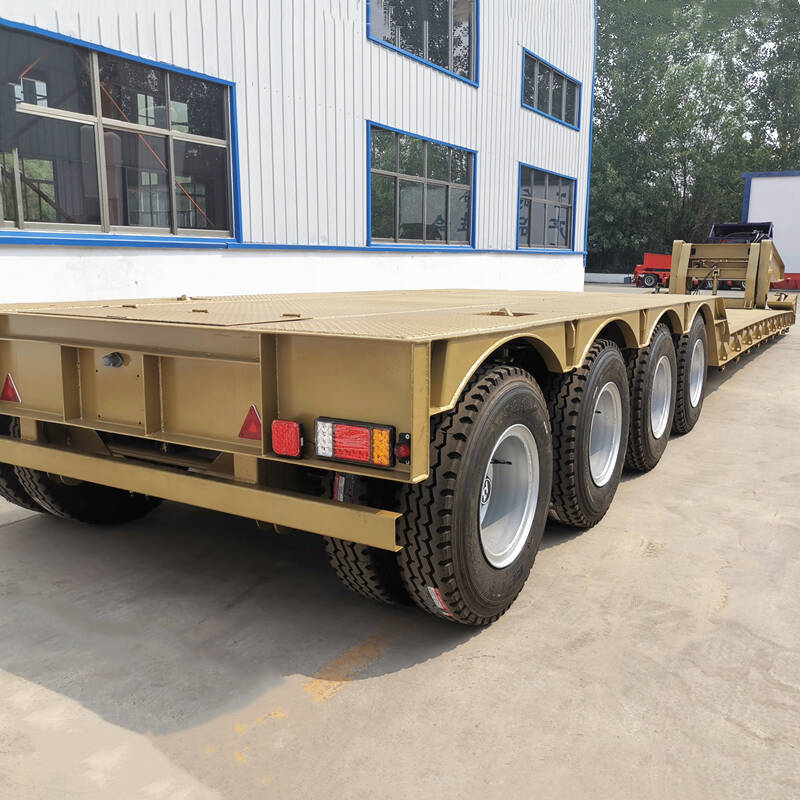

CIMC 4 Axle 100 Ton Lowboy Trailer
100Ton Detachable Gooseneck Trailer for Sale
Dimension(L*W*H): 17000*3000*2500mm ( Details will be according to the drawing)
Loading capacity: 100 ton lowboy trailer
Axle: 4 axles, FUWA/BPW/CIMC/other
Tire: 16 pcs
Frame Material: HG60 high strength steel, Main beam height: 550mm
Working platform: 7600mm
Platform height: 800mm
Floorplate: 5mm, diamond plate
Suspension: spring suspension, air suspension, bogie suspension
Braking system: WEBCO
King Pin: 2" 50# or 3.5" 90#
Electric System: 24V, LED light
Color: white, blue, yellow, green, red, color optional
1. Lowboy semi trailer main beam height is 550-580mm. The front/down plate width is 220mm, and thickness is 22mm. That durable and stronger construction ensure the loading capacity, and also improve its capacity to twisting forces, shock, bump, and meet load requirements on bad road condition.
2.Side beam adopt “H” steel, height is 300mm, width is 140mm, and its thickness is 8/6/8mm. The durable design avoid the side beam to have the deformation.
3.Side support’s thickness is 6mm, the distance of the side support is only 450mm. The side support firmly connect the main beam and side beam to improve the whole vehicle’s loading capacity, prevent the working platform to have cave the deformation.
4. Lowboy trailer main beam height is 550-580mm. The front/down plate width is 220mm, and thickness is 22mm. That durable and stronger construction ensure the loading capacity, and also improve its capacity to twisting forces, shock, bump, and meet load requirements on bad road condition.
5. Removable gooseneck trailer side beam adopt “H” steel, height is 300mm, width is 140mm, and its thickness is 8/6/8mm. The durable design avoid the side beam to have the deformation.
Gooseneck lowboy trailer side support’s thickness is 6mm, the distance of the side support is only 450mm. The side support firmly connect the main beam and side beam to improve the whole vehicle’s loading capacity, prevent the working platform to have cave the deformation.
