Dimensions:12100*2500*3900mm
Tank Capacity:50,000 liters diesel fuel tank trailer
Compartments:1 to 7 compartments, based on customer needs
Main Beams:Q345B steel fabricated I beams.
Axles:3 axles, 13T
The tank body is made of a professional canning machine and can be molded at one time. The maximum pair guarantees the degree of the solidity of the tank body. CIMC 40000 Liters Oil Tanker Trailer uses high-quality stainless steel material. The type of material used on a 3 Axle 40000 Liters Oil Tanker Trailer determines its price and loading capacity.
Stainless steel has high strength and is not damaged easily, so 40000 Liters Oil Tanker Trailer is resistant to rust, can used to transport edibles.

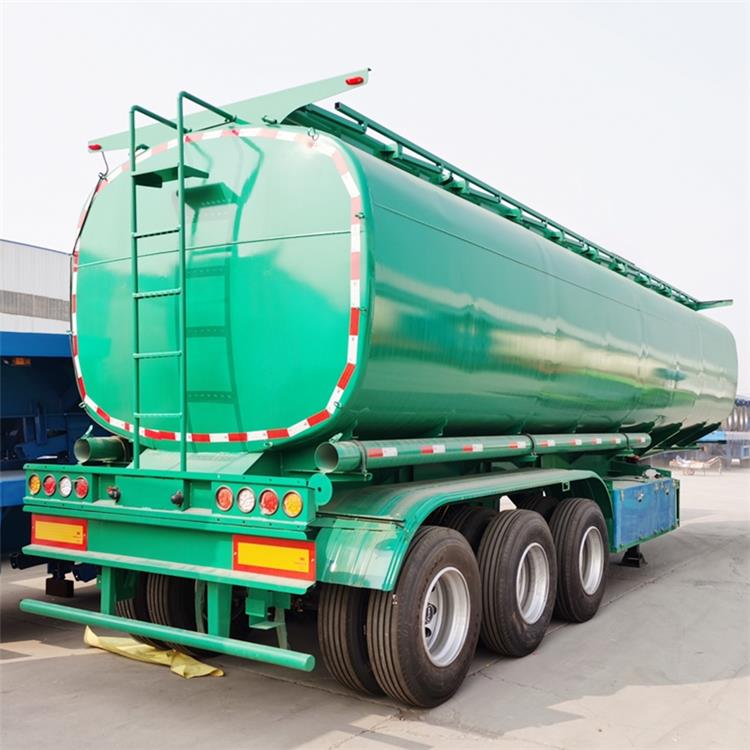

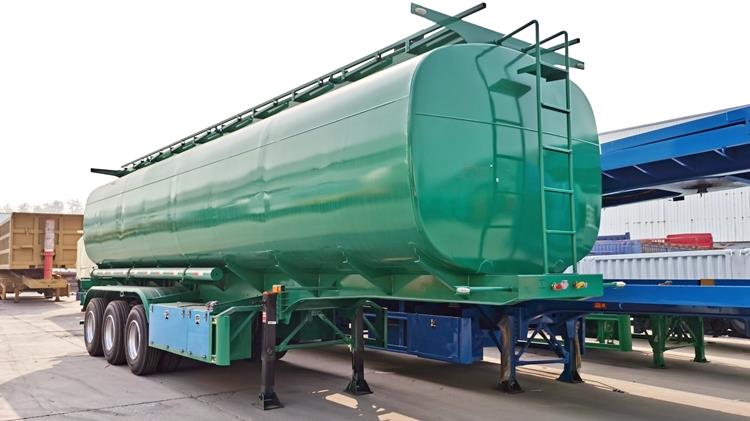

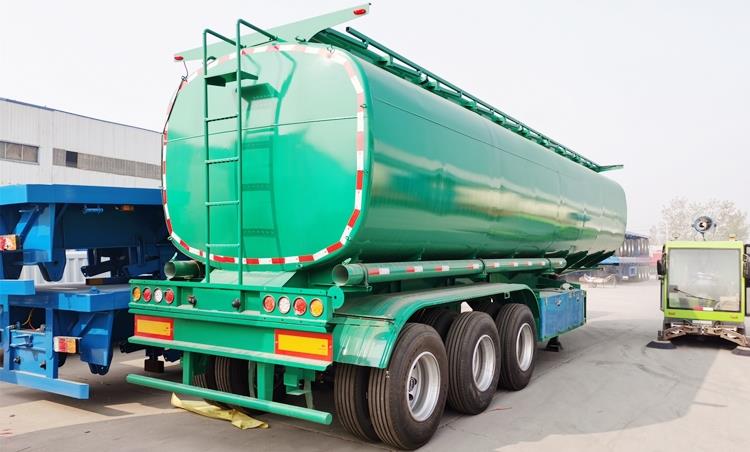

CIMC 3 Axle 40000 Liters Diesel Oil Tanker Trailer for Sale In Ghana Accra
40000 Liters Petrol Tanker Trailer price
Dimension: 12100mm*2500mm*3900mm(the exact size depends on the final design)
Volume: 45000liters
Application: transport Fuel, Oil, Diesel
Tank body:
Material: Carbon steel
Tank body and separate compartment plate: 6mm
Compartments: 1 to 7 compartments, based on customer needs
Manhole cover: Carton steel or Aluminum alloy API manhole cover 500mm (diameter)
Discharge valve: Diameter is 3 or 4 inch
Bottom valve: Aluminum API Pneumatic Bottom Valve
Tanker body test: Hydrostatic test to 5 psi (35 Kpa) on each compartment
Chassis:
Axles: 3 units, FUWA/BPW/CIMC/other
Landing Gear: JOST brand
King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Suspension: Mechanical suspension or air suspension
Brake System: WABCO
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
1.40000 Liters Oil Tanker Trailer use highly technical equipment to ensure the process of loading, transporting and offloading the fuel product is as safe and wasteless as possible. Many fuel tankers are fitted with special devices that read the quantity of fuel being loaded, control pressure, and even regulate temperature!
2.During the loading process, the vapour of the fuel is carefully monitored as these gases are highly flammable. Once loaded, the trucks are secured for travel and can head off to their destination, which is fitted with the same type of hose to properly offload the fuel.
3.A specific type of hose is used during the process of loading and offloading the fuel. These hoses are designed to fit the opening on the tankers and usually have gaskets and seals in place to reduce and limit the amount of potential spilling
