Max payload: 50T
Suspension: Mechanical / air / bogie suspension
Mechanical / air / bogie suspension: Heavy Duty Landing Gear
Material: Aluminum alloy
Box trailer is mainly used to transport home appliances, textiles, coals, sands and other building material as well as goods that can be carried by pallets.
The fully enclosed trailer body is made of high-strength steel plates welded together to form an ample loading space.
Unique to the aluminum dry van trailer is the side guardrail that protects both sides of the van box trailer during living. Rear guard design comes with special devices that facilitate the push of the trailer from behind. The trailer box opens on both sides to allow easy and fast unloading.

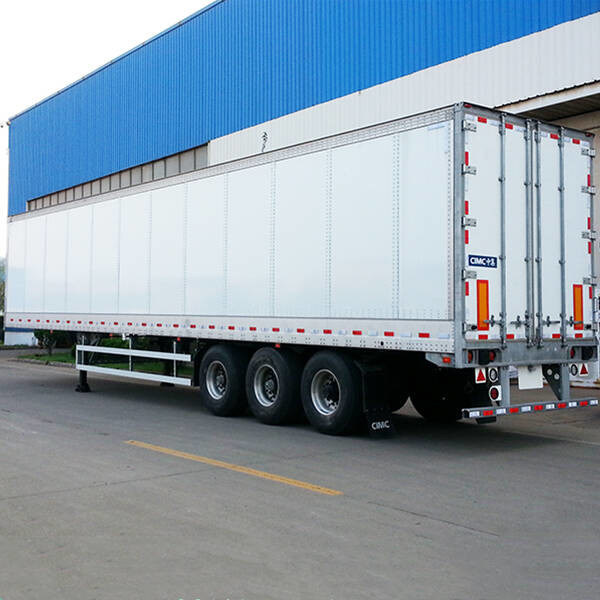

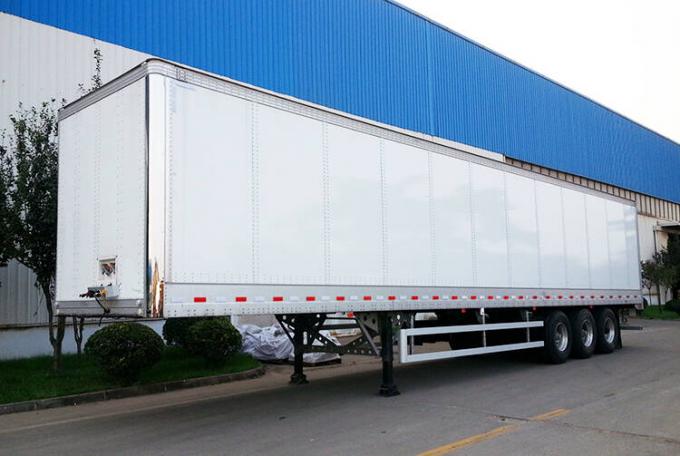

CIMC 3 axle aluminum dry van trailer
|
Dimension |
13000mm*2500mm*4000mm |
|
Load Capacity(T) |
60T |
|
Axle |
3 axles |
|
Tire |
12 units |
|
Suspension |
Mechanical suspension |
|
King pin |
JOST brand 2.0 or 3.5inch(bolted or welded type) |
|
Support leg |
JOST brand |
|
Brake chamber |
WABCO |
|
ABS |
Optional |
|
Valve |
WABCO valve |
|
Light |
LED light (specially intended for oversea market) |
|
Voltage |
24V |
|
Receptacle |
7-pin Socket (for 7 wire harness) |
|
Semi Trailer Surface Coating |
Sandblasted, anti-rust chassis surface is available with 1layer of anticorrosive primer and 2 layers of top coats |
Aluminum dry van 3 axle trailer are the most frequently used equipment type due to their versatility to hold a variety of different products.
Various types of box tops are available to meet various customer needs, including closed, side open, open, and open type with tarpaulin rod.
X-shaped brace allows the box to load heavier goods while still keeping a lightweight design.
The rated capacity varies widely from 30Tons to 100Tons, and the dimension different from 7000mm to 18000mm, we can manufacture it according to your needs.
According to the material of the box body, the materials of the box semi trailer are mainly steel, aluminum, aluminum-plastic composite panels, etc. According to different types of transported goods and cost factors, different box panel materials can be selected. At present, the mainstream material of the box semi trailer is mostly carbon steel and aluminum alloy. Aluminum box semi trailer mainly pursues light weight, high strength, convenient loading and unloading, which represents the development direction of dry van trailer in the world.
