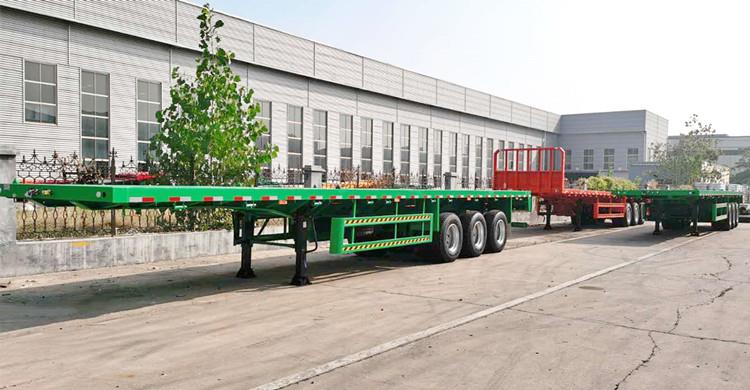

CIMC Tri Axle Flat Bed Trailer for Sale in Harare
CIMC tri axle flat bed trailer for sale is another commonly used type of container and equipment in the transportation industry.
CIMC tri axle trailer feature durability in off-road conditions, they are cross-functional for the carriage of commercial and industrial cargo up to 60 tons on roads of any category. CIMC tri axle flat bed trailer for carrying 40ft container, 20ft container and bulk cargo.
The function of a tri axle trailer for sale is made possible through its structure’s design and manufacture. Basically, it is a transport equipment mainly of a steel construction defining its frame. It also comprises a lighting system, brakes and tires. It is carefully designed to desired heights and weight capacity to safely load and transport cargoes from one location to another. Use flat bed trailers to transfer cargo at the shipper’s warehouse. Unloaded to the consignee’s warehouse, when changing trailer or boat on the way, there is no need to take the goods out of the box and change them.
The size of the tri axle flat bed trailer loading area is determined according to the standard container size. A twist lock device for fixing the container is provided at positions corresponding to the four corners of the bottom of the container. Flat bed trailers are special trailers for transporting containers.
CIMC Tri Axle Flat Bed Trailer for Sale in Harare

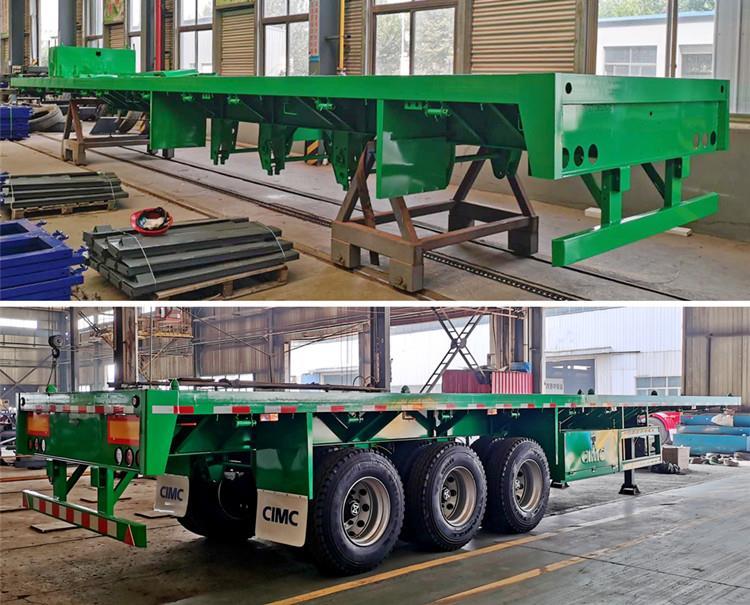

1. Frame:
Main beam: We adopts the low carbon high strength alloy steel T700 to make the main beam , it has a higher carry capacity and service life of more than 10 years.
Bottom plate: The floor plate is the 3 mm and it’s diamond plate, It is thicker than the 2.5mm or 2mm floor plate of other factories. The floor plate is strong and durable, and is not easy to deform.
Side beam: The thickness of the side beam we made is 160mm, 100mm channel for through beam, and all of the through beam are supported by the Inclined support frame, and the distance of these frame no more than 500mm, which can ensure the tri axle flat bed trailer not easy to deform.
Under beam: We have 6 beams under the floor plate, effectively ensure the flatness of the floor plate.
2. Welding process:
We use automatic submerged arc welding process to weld the main beam. There is no interface between the upper, middle and lower plates of the beam, so it can ensure the integrity of the main beam and make the beam more solid and durable.

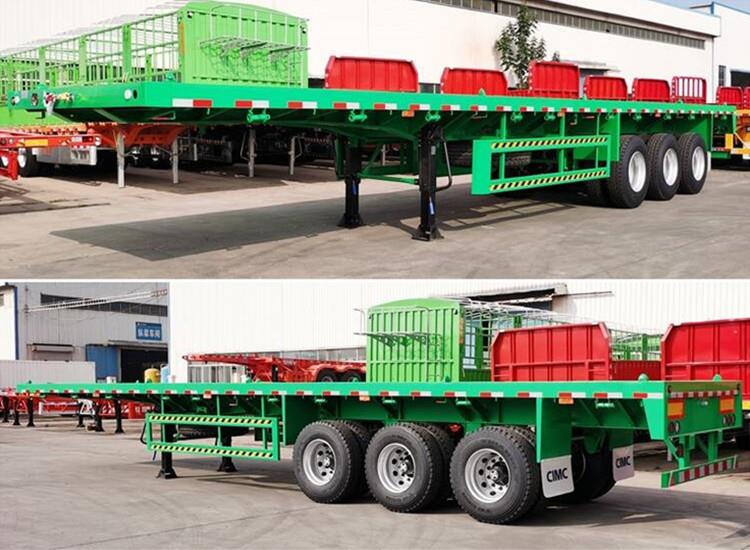

CIMC Tri Axle Flat Bed Trailer for Sale in Harare
3. Parts:
We adopts the best parts for tri axle flat bed trailer, such as the axle with 16 tons brake system, 3mm base plate, etc. with longer service life.
Landing gear: CIMC optional Jost landing gear which is a world recognized famous brand accessory with a better bearing capacity and long service life
Suspension: We use the reinforced suspension on our tri axle flat bed trailer, 70mm center balance pin. In the front and rear of the suspension, left and right are reinforced. A separate focus on road conditions in Africa, addressing dirt and poor road conditions
For some other factories, they use the light type suspension, the center pin is 45mm only, will make a short service life and lead to serious tire wear.
Axles: We used a 16 ton brake axle; CIMC axle has 9 years of experience in production quality, better bearing capacity and good braking effect. Other factories use 13 ton brake system axle.
Tires: We has been using tires with the company for more than 12 years. The quality is very stable. In China, it can use 200,000 kilometers for two years without any problem
Braking system: Effective braking, fast braking response, braking distance reduction of more than 5 meters. Also available is the WABCO braking system
Brake pipe: Tri axle flat bed trailers brake pipe is a high-pressure rubber pipe, the service life of more than 10 years. Wires are made of cables. Service life over 5 years. Other home is used on the ordinary pair of windpipes and wires, service life of about 1 year.
4. Paint:
CIMC adopts the Polyurethane paint for all of our tri axle flat bed trailers which has high adhesion, more beautiful color, and the cost is twice of ordinary paint. But the paint will not fall off after more than five years of use.
CIMC Tri Axle Flat Bed Trailer for Sale in Harare
