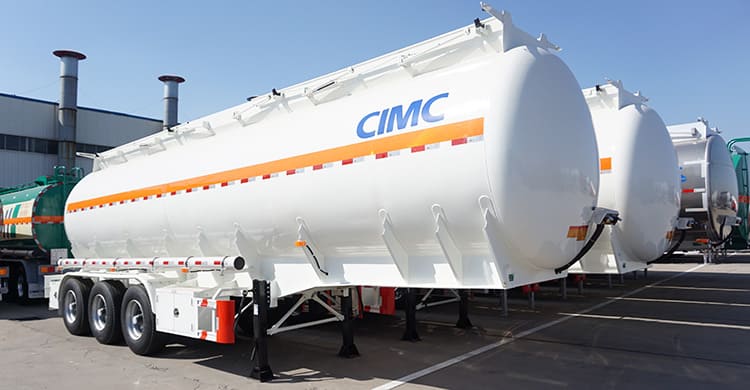

Tri Axle Heavy Fuel Tanker Semi Trailer for Sale in Tanzaina
Congratulations to the Tanzania customer's heavy fuel tanker semi trailer that has passed a series of tests and performed well, and is about to be sent to the port.
This time, the Tanzania customer discovered our fuel tanker semi trailer through the Alibaba platform. The Tanzania customer has always heard that CIMC's fuel tanker semi trailer trailer for sale is of good quality, so he left his contact information. Soon, our sales manager got in touch with the Tanzania customer, and the sales manager introduced the CIMC semi trailer fuel tanker to the Tanzanian customer in detail. Since it is the customer's first time to buy fuel tanker semi trailer for sale in CIMC, the customer can enjoy the discount of the first purchase price. The customer was satisfied, so he placed an order for a fuel tanker semi trailer at CIMC.
Tri Axle Heavy Fuel Tanker Semi Trailer for Sale in Tanzaina

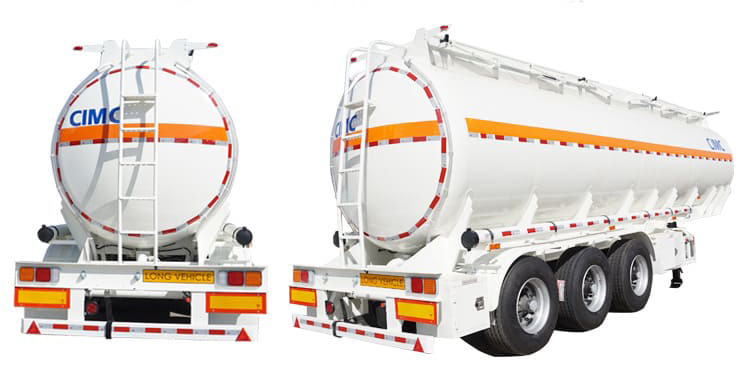

The structure of the semi trailer fuel tanker is an elliptical cylinder or a square cylinder, which is made of high-quality steel plates. The entire tank can be divided into multiple compartments, up to 7 compartments, for different oil products. There are through holes at the lower end of the middle partition plate. The middle of each warehouse is welded with a sub-silo to strengthen the wave-proof partition to reduce the impact of the oil on the tank body when the car is running and improve the rigidity of the tank body.
Important configuration of the fuel tanker semi trailer
1.Bottom valve
Each compartment of CIMC tank has eqquiped with bottom valve. This increases the safety of the tanker and makes it easier to load and unload oil.
Tri Axle Heavy Fuel Tanker Semi Trailer for Sale in Tanzaina

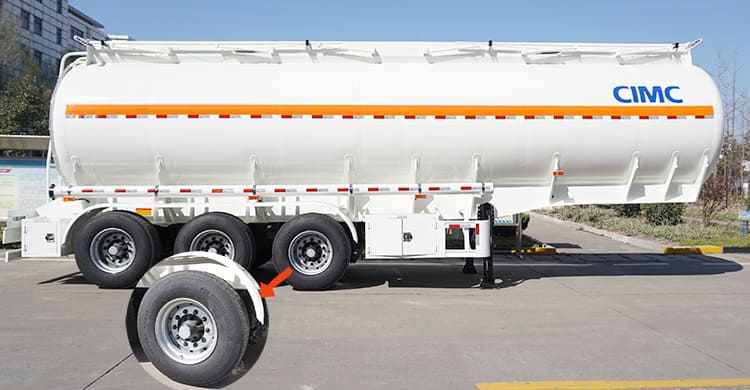

2. Static conducting device
It is installed on the back of the tank foot of the refueling truck and always keeps in contact with the ground. Its function is to introduce the static electricity generated by the impact and shaking of the oil or the static electricity generated during the operation of the refueling machine and the generator into the ground at any time, so as to prevent the Fire accident caused by static electricity.
It is fixed on the frame. When refueling or draining oil from the oil truck, you must pull out the pole and insert it into the wet ground to introduce the static electricity generated by the friction of the oil when refueling or discharging the oil into the ground, so as to prevent the static electricity caused by static electricity. Fire accident caused by short circuit.
Tri Axle Heavy Fuel Tanker Semi Trailer for Sale in Tanzaina

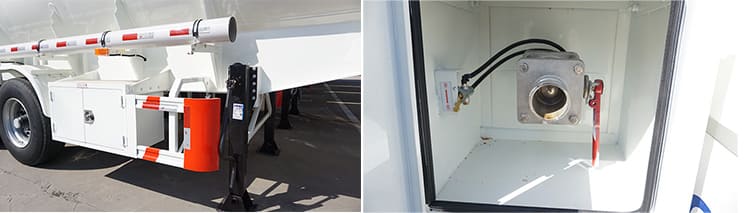

3.discharging valve
discharging valve: it can be placed on the left or right side of the tank; The model can choose Chinese style, European style. The discharging valve could be made of European style.
4. Breathing valve
In order to ensure that the pressure in the tank is basically the same as the atmospheric pressure during the working process of the refueling truck, a breathing valve is installed on the large cover of the tank. When the oil in the tank is heated and expanded or when the oil pump is used to refuel the tank, the oil level in the tank rises. , the pressure increases. When the pressure in the tank is higher than the external pressure by 8KPa, the upper valve plate of the breathing valve opens; when the oil pump is used to discharge oil outward or the oil is contracted by cold, the oil surface drops and the pressure decreases. When the pressure in the tank is lower than the outside pressure When the pressure is 3KPa, the lower valve plate of the breathing valve is opened.
