CIMC 3 Axle Flatbed Tractor Trailer will be sent to Namibia
The Namibia customer has been following CIMC on our website for a long time, and the customer said that he would watch every update and was very satisfied with the production details of China CIMC's product quality, so the customer sent an inquiry to ask about the price of the 3 axle flatbed tractor trailer.

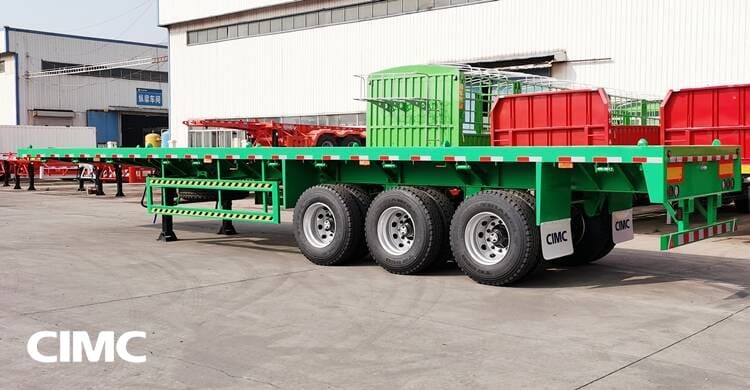

The Namibia customer runs a small and medium-sized company that mainly transports containers. Although it was the first cooperation, it went very smoothly. The customer paid the full payment within 5 days. Below is a picture of the customer's two units of 3 axle flatbed tractor trailer shipment.
Purchasing a flatbed trailer is a major event for many customers. From the selection of suppliers, to specific negotiations, to ordering the trailer, to the receipt of the trailer, every stage is careful. However, many customers do not understand the specific details of flatbed tractor trailer. For this reason, the staff of China CIMC has summed up some experience, hoping to help everyone when picking up the trailer.
CIMC 3 Axle Flatbed Tractor Trailer will be sent to Namibia
Connection operation:
1. In order to connect the traction pin and the traction seat smoothly, the semi trailer should be in a state of air outage.
2. Lift the outriggers so that the tri axle trailer traction pin seat plate is about 10-13 mm lower than the center position of the traction seat of the truck.
3. Open the unlocking lever of the traction seat on the truck and open the traction locking mechanism.
4. Turn the truck backwards so that the flatbed tractor trailer traction pin is guided into the opening of the locking mechanism through the V-shaped opening of the traction seat and pushes the locking block to rotate and lock the traction pin.
5. Connect the gas path. open the semi trailer connection disconnect switch on the truck head to make the trailer get enough air pressure.
6. Connect the circuit and insert the wire connection plug of the truck head into the wire socket of the flatbed trailer for sale.
7. Operate the lifting leg correctly to retract it, then pull down the handle and hang it on the hook.

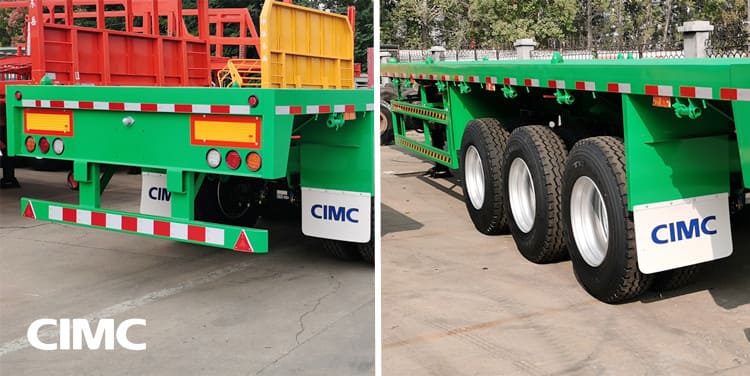

Some details of CIMC 3 Axle Flatbed Tractor Trailer
Separation operation:
1. Try to choose a flat and solid ground to separate the flatbed tractor trailer and the truck head. If the foundation is soft or the asphalt road is separated in summer, a thick wooden board should be placed under the base of the lifting leg to prevent the situation of reconnection due to sinking load.
2. Operate the lifting leg so that the base of the lifting leg is on the ground, then change the low gear and lift the semi-trailer with some clearance to exit the truck head.
3. Disconnect the plug from the semi trailer wire connection socket.

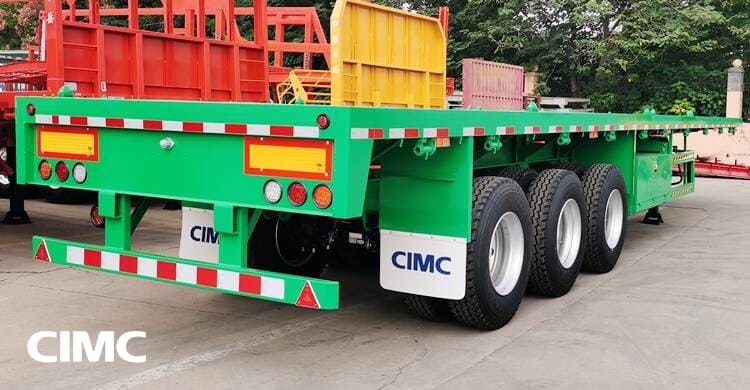

Some details of CIMC 3 Axle 40 Foot Flatbed Tractor Trailer
4. Turn off the tri axle 40 foot trailer air connection disconnect switch on the truck head, and then change the low speed position to remove the tractor’s air connector from the semi trailer.
5. Pull out the traction seat to unlock the lever, so that the locking block is opened.
6. Drive the tractor slowly forward to disengage the traction pin from the traction seat to separate the flatbed tractor trailer and the tractor truck.
7. After separation, check all parts of the semi trailer for abnormalities, and unscrew the drain valve at the lower part of the gas cylinder to drain the water in the cylinder.

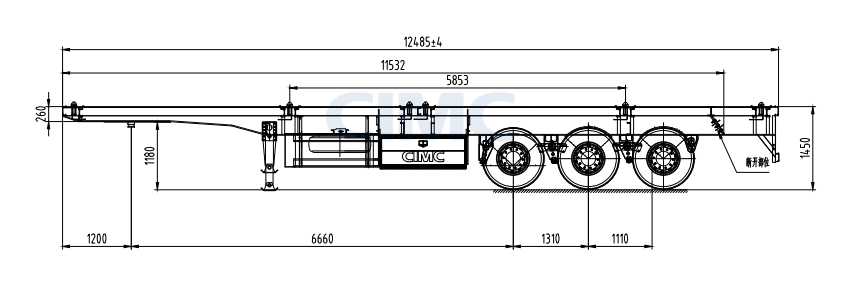

Drawing of CIMC 3 Axle 40 Foot Flatbed Tractor Trailer
