CIMC 3 Axle 34 Ton Dropside Side Tipper Trailer for Sale in Sudan
Customers in Sudan need to buy 34 ton side tipper trailer for sales, but when conventional dump trailers have larger vehicle specifications and more loads, the lifting height will be very high in order to unload the goods. In the case of poor local road conditions, there is a certain degree of insecurity. For safety, customers want to buy 34 ton side tipper trailer for sale.
He left his product requirements and his contact details on our Made in China. Our sales staff quickly confirmed more detailed product requirements to him, such as the product load and side wall height required by the other party. After confirming the product details, he immediately made a professional quotation to the customer, and shared with the customer the production cases and details of some 34 ton side tipper trailer for sales previously exported by CIMC. These rich production experiences make customers completely trust our product quality.

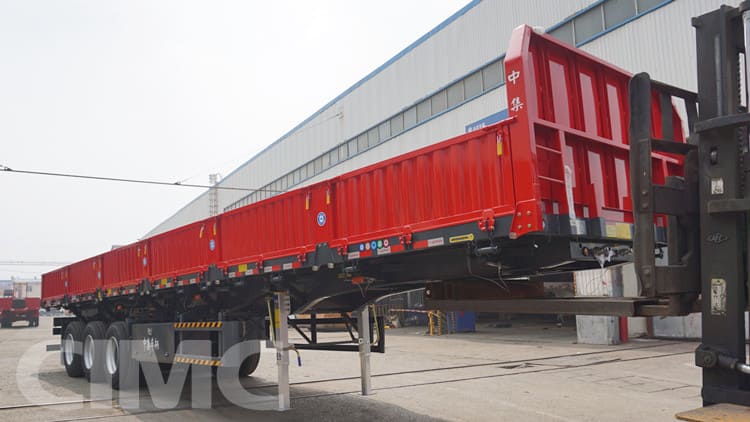

CIMC 3 Axle 34 Ton Dropside Side Tipper Trailer for Sale in Sudan
So finally Sudan's customer placed an order with us. Our company is very large, and there are many dropside side tipper for sales that customers need in stock. We proposed to the customer that we can provide the spot. The customer was very pleasantly surprised, and he chose to buy the spot without hesitation.
1. The most important thing about the dropside side tipper for sale is the hydraulic system and the diagonal brace.
The user must pay attention to the dropside side tipper for sale when purchasing the side tipper trailer. Try to choose a famous brand for the hydraulic top, and the diagonal brace should pay attention to the manufacturer's welder and reinforcement.
2. The number of hydraulic jacks depends on the tonnage. The support must be firm
The hydraulic roof is an important part of 34 ton side tipper trailer for sale. According to the different deadweight tonnage, there are generally several diameters such as 110, 125, 130, 150, etc. Generally, the standard load does not exceed 60 tons with 110 5+1 (5 lifting cylinders, one Shift cylinder) or 130 4+1; heavy load 80 tons-120 tons generally use 6+1 or 7+1 150 cylinders. The displacement top generally uses 160 or 180 cylinders.
3. Lift the top
The brand used more is Hyva, which has better quality and service, but the price is more expensive.

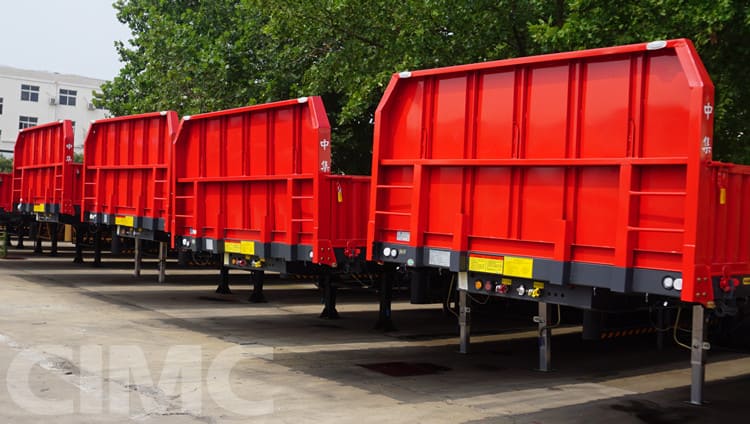

CIMC 3 Axle 34 Ton Dropside Side Tipper Trailer for Sale in Sudan
4. Uneven force during 34 ton side tipper trailer for sale requires high load-bearing beams
The importance of girders to semi trailers is self-evident. For 34 ton side tipper trailer for sale girders, the girders of dropside side tipper for sales are generally larger than those of van trucks of the same load.
The first reason is that the main beam of the 34 ton side tipper trailer for sale has a subframe on a flat road. The force of the main beam is the same as that of an ordinary van, but when it rolls over, the force of the main beam is uneven. The requirements of beams are higher than that of ordinary cars. The second is that the goods pulled by the 34 ton side tipper trailer for sale are generally heavy goods such as steel, stones, and coal, which also require a high load-bearing capacity of the girders.

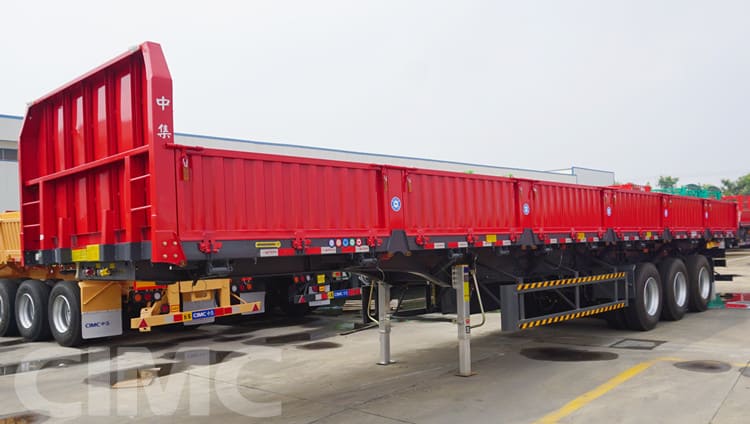

CIMC 3 Axle 34 Ton Dropside Side Tipper Trailer for Sale in Sudan
5. Shift top
The hydraulic roof support carries a large part of the weight of the cargo when it is lifted, and the firmness of the support is very important. The shaft at the joint of the hydraulic jack and the sub-frame should be well protected, otherwise, it is easy to bend.
6. Diagonal bracing reinforcement is very important, the more fulcrums, the higher the reliability
Diagonal bracing, when it rolls over, most of the weight of the cargo is borne by diagonal bracing. Therefore, the firmness of diagonal bracing is very important. Once the diagonal brace has a problem, it will easily cause a rollover accident. Therefore, the reinforcement of the diagonal brace is very important. In the picture above, one support point has 6 channel steel reinforcements.
The number of diagonal braces should be reasonable. Of course, the more the better, the more rollover braces, the smaller the force that each pivot can bear, and the higher the reliability. Generally, there are 5 pivots for 13m rollover and 6 for 15m.

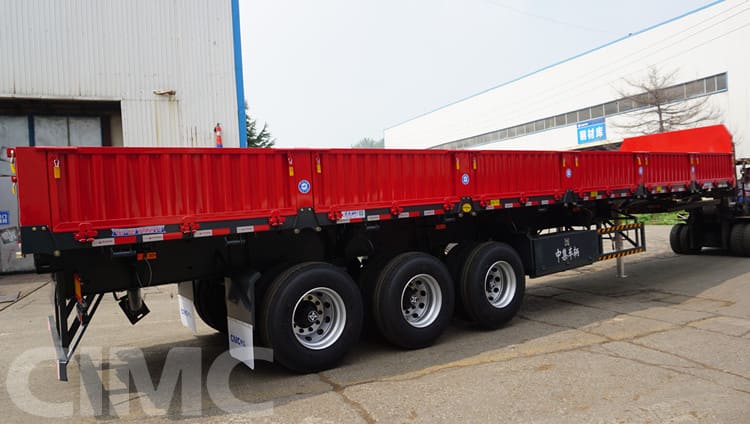

CIMC 3 Axle 34 Ton Dropside Side Tipper Trailer for Sale in Sudan
Pay attention to the rotating bracket at the top of the diagonal brace. The pin must be pulled out when the side tipper trailer rolls over. If the design here is unreasonable, it will be easy to pull out if it is bent a little, which will affect the unloading.
