CIMC 40Ft Container Side Loader will be sent to Tanzania
Our Tanzania Customer‘s business is container shipping mainly. As a local customer with a large daily transportation volume, he needs container side loader to help him improve transportation efficiency. So when he searched on Google, it was clear that China CIMC is a manufacturer specializing in the production of container transport semi-trailers, including container flatbed trailer, container van semi trailer and side loader truck. After browsing our website and reading the case and product pages, he decided to choose CIMC as his partner.
We found his comments on the website: cimcfactory.com, added him as a WhatsApp friend, and gave detailed advice and quotes via e-mail. Customer was grateful for our professionalism. So he readily ordered two container side loader trailers. Now the two side loader trucks have been produced according to the actual transportation requirements of our Tanzania customer and are ready to be sent to the port of dar es salaam in Tanzania.

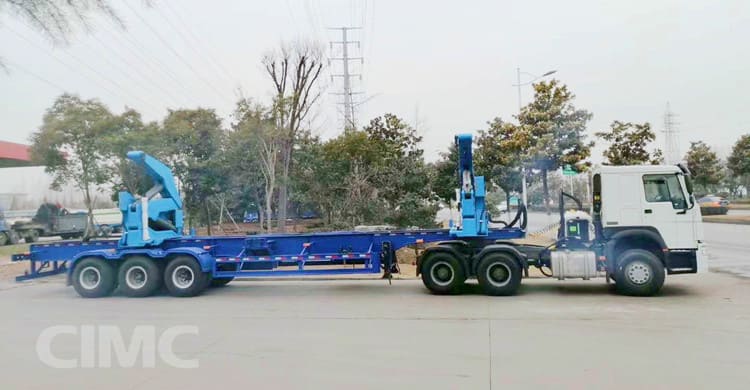

CIMC 40Ft Container Side Loader Truck will be sent to Tanzania
The CIMC side loader can complete a variety of operation functions such as container self-loading and unloading, vehicle-to-vehicle transfer, etc. It has the characteristics of large lifting capacity, long operation range, wide application range, good versatility and strong accompanying loading and unloading support ability. The hoisting requirements of containers at different locations are widely used in container logistics, port freight transfer stations, railway container handling stations, warehouses, military logistics support, customs departments and other container distribution centers. Its "fast, flexible, efficient and convenient" characteristics have been more and more awareness and recognition.

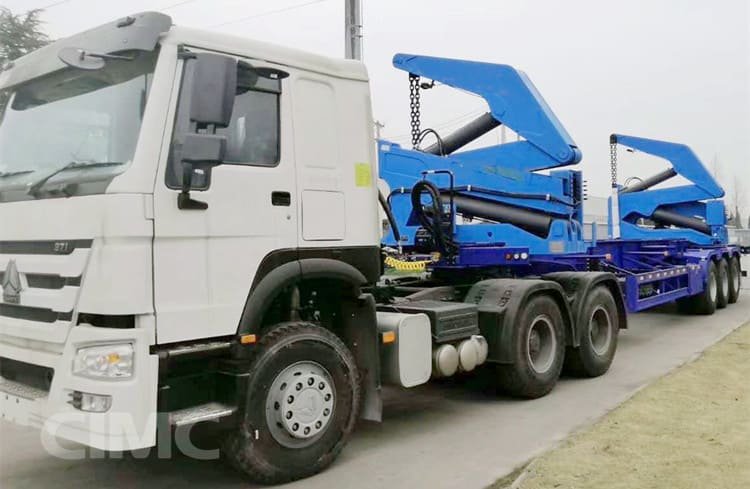

CIMC 40Ft Container Side Loader will be sent to Tanzania
The side loader truck has a long average trouble-free working time, stable and reliable performance, compact and reasonable layout, beautiful and fashionable, easy to use and easy to maintain.
1. Skid-steer container side self-loading and unloading transporter
Through the sliding of the front and rear cranes, the loading and unloading of 20ft or 40ft containers or similar containers can be realized. It has a wide range of applications and good versatility, which greatly expands the use of the equipment.
2. Double pump and double branch
The whole side loader is powered by an engine with adjustable speed. The hydraulic oil output by the double pump passes through the confluence valve group, and then is sent to the multi-way valve group of the front and rear side cranes connected in series to drive the respective actuators, with a wider range of linkage. The adaptability greatly ensures the stability and reliability of the hoisting process.
3. Electro-hydraulic load adaptive
High and low pressure double pumps are used, and oil is supplied to the front and rear two cranes after the combined flow of the diverter valve, which can realize the large flow of simultaneous oil supply by the dual pumps under low pressure conditions and the low pressure pump under high pressure conditions. The small flow for high pressure unloading ensures the efficiency and quality of the hoisting operation. This technology can not only ensure the stability of the speed switching of the crane under high and low pressure conditions, but also make full use of the output power of the engine, which is more economical.

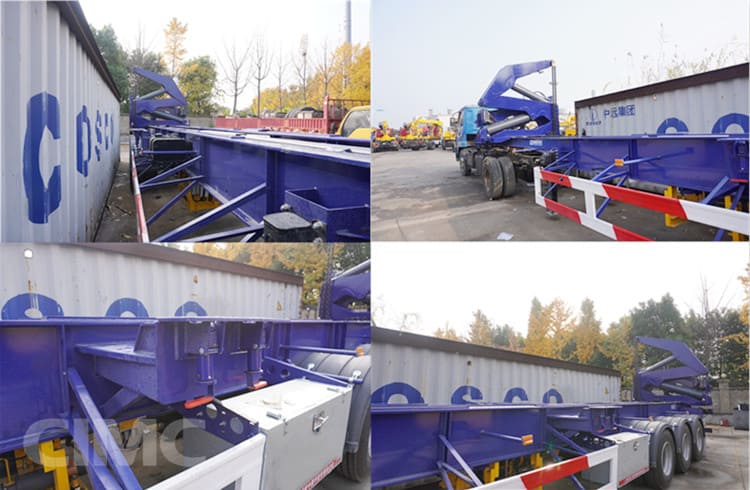

Details of CIMC 40Ft Side Loader Trailer for Sale
4. Chain twist lock device for container loading and unloading and automatic storage
The chain twist lock mechanism for container loading and unloading, the twist lock is automatically rotated and locked in the container corner pieces during the packing operation, and will not fall off, ensuring the safety during operation; during transportation, the twist lock can still be automatically locked through the limit device , which relieves the repetition of the operator's transportation and unloading of the chain and the unloading and loading of the chain, and greatly improves the safety during driving; after the operation is completed, by optimizing the movement trajectory of the lifting point and the position of the chain, the lifting of the chain during the recovery process of the boom is realized. The automatic storage greatly improves the comfort of operation and the safety of the whole side loader for sale.
5. Control system optimization technology
The whole side loader reasonably matches the combination of the remote wireless control remote controller and the load-sensitive electro-hydraulic proportional multi-way valve with pre-valve pressure compensation. The remote control operation is safe, comfortable and convenient. The remote control panel and handle are people-oriented and conform to the movement trend of the machine; proportional control realizes stepless speed regulation, ensures the smooth operation of the side loader for sale , and can accurately control the subtle movements.
6. Reasonable matching of safety systems
During the operation of the side loader for sale, there is an intelligent anti-tipping protection system on one side of the outrigger to monitor the stability of the side loader in real time. If there is a danger of tilting, it can automatically alarm and effectively lock; The container enters the hazardous area. The application of high-strength steel plates is guaranteed to be safe and reliable through advanced software analysis and rigorous testing; at the same time, high-quality hydraulic seals, high-level electrical protection, safe and reliable locking mechanisms, and practical and safe emergency stop functions have also increased. So the CIMC container side loader is more safe and secure.

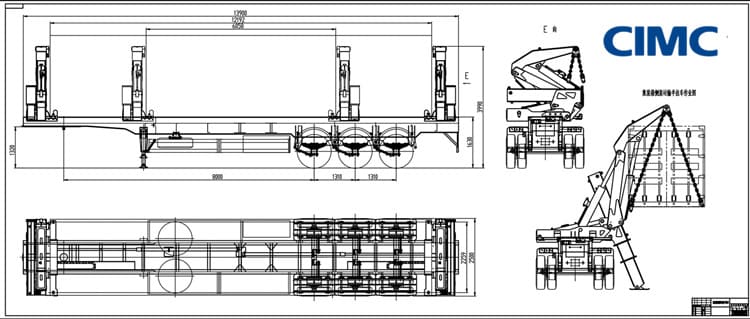

Drawing of CIMC 40Ft Container Side Loader Truck Trailer
