3 Line 6 Axle 100Ton Hydraulic Low Bed Semi Truck Trailer for Sale in Chile

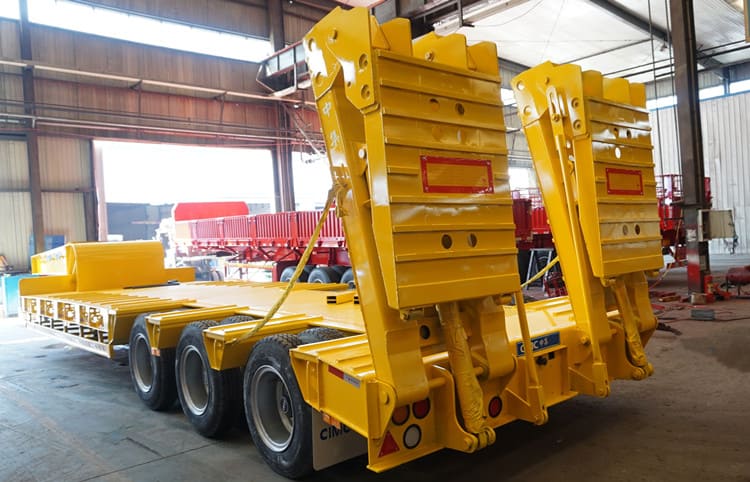

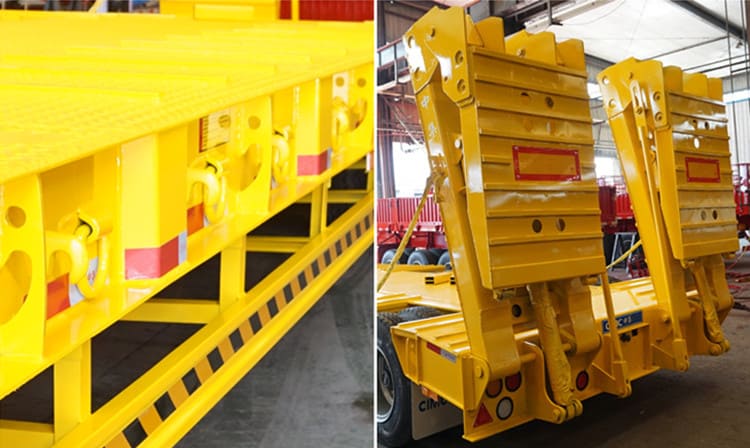

The Chilean customer is our old customer. He is a local transportation company in Chile. Before, he needed an ordinary 3 axle hydraulic low bed truck, but this time he got a new project and had higher requirements for hydraulic low bed truck. What is needed this time is a 3 line 6 axle 100 ton hydraulic low bed truck, and the ladder is a folding hydraulic ladder. Our sales staff are already well acquainted with the customer's habits, and quickly sorted out the relevant documents, sent the quotation to the customer, and placed the order smoothly.

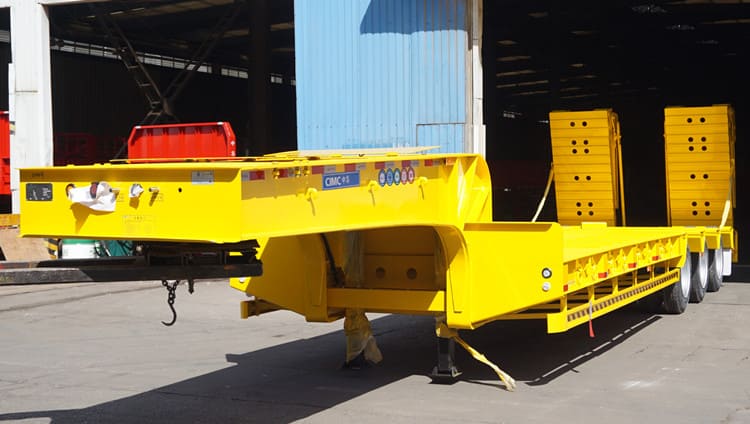

3 Line 6 Axle 100Ton Hydraulic Low Bed Semi Truck Trailer for Sale in Chile
Before production, CIMC technical department must first design and produce drawings according to the needs of the user and the market, so that the technical parameters of the main hydraulic low bed semi trailer and 40ft hydraulic low bed trailer for sale are matched, and then transferred to the manufacturing department.
1. Stage of cutting steel sheet material
According to the drawings of each part produced by the design department, each part is cut out with a CNC cutting machine, such as beam webs, reinforcement plates, standard small accessories and so on.
2. Submerged arc welding beams, beams fixed
The second step is to fix the cut web and the upper and lower wing plates to weld points, and then weld the beam by submerged arc welding.
3. Opening, calibration beam, through beam
First cut out the web of the beam to cut out U-shaped holes through which the beams can pass, and then fix the welded I-beams in parallel. The result of comparing the beams is very important. If two I-beams have large parallel errors, very serious tire wear will occur.
3 Line 6 Axle 100Ton Hydraulic Low Bed Semi Truck Trailer for Sale in Chile
4. Connect side beams, welding king pins
At this time, the hydraulic low bed trailer for sale of the main beam is basically formed, only the side beams are welded to form the frame structure. And the traction pin traction plate is welded to the position required in the contract, the welding process is required to be high, otherwise, the hydraulic low bed semi trailer will be skewed.
5. Welding frame, welding suspension
At this time, the welding suspension must strictly control the size and maintain the squareness, otherwise it will cause 2 axle hydraulic low bed trailer for sale malaysia of tire wear.

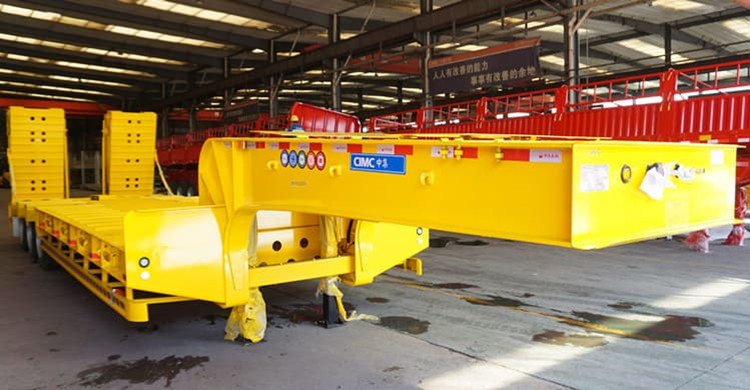

6. Attach the front neck
Hydraulic low bed trailer for sale with front neck have this process, and hydraulic low bed semi trailer in kenya do not have this process. The front neck of the hydraulic low bed truck is welded up. Welding is done to strengthen the plate. There is no problem with the strength. CIMC used hydraulic low bed truck malaysia have also considered it in advance.
3 Line 6 Axle 100Ton Hydraulic Low Bed Semi Truck Trailer for Sale in Chile
7. Lay the bottom plate
That is, the hydraulic low bed truck of the bottom plate is fully welded on the frame. There is nothing to say at this step.
8. Frosted and painted
Frosting is the previous step of spray painting. Some manufacturers without shot blasting workshops will blow and polish the welding slag with high pressure gas at this stage.
Spray paint is usually sprayed in a well-ventilated shed. If you want to spray beautifully, you must first look at the coating and the technology of the technicians, but CIMC hydraulic low bed semi trailer will spray very beautifully.
