CIMC New 3 Axle 40 Ton Lowbed Truck Trailer will be sent to Guyana
Guyana customer loves China CIMC brand because he already has a CIMC trailer and has been using it for many years. This time, it is because the appearance of the trailer is too old. Although it does not affect the use, the customer still wants to buy another CIMC trailer. So when he searched on Google, he found our cimc factory and learned that we are an authorized agent of CIMC, so he is very relieved to hand over the order to us. Also very efficient and easy when communicating with our sales manager Sophia. Because we fully understand the needs of our customers and are already very experienced.
Because the lowbed trailers are we most often produced and exported, we quickly finished the production of the lowbed transport and handed over the work. The next step is to send the lowbed trailer to the customer's place as soon as possible.

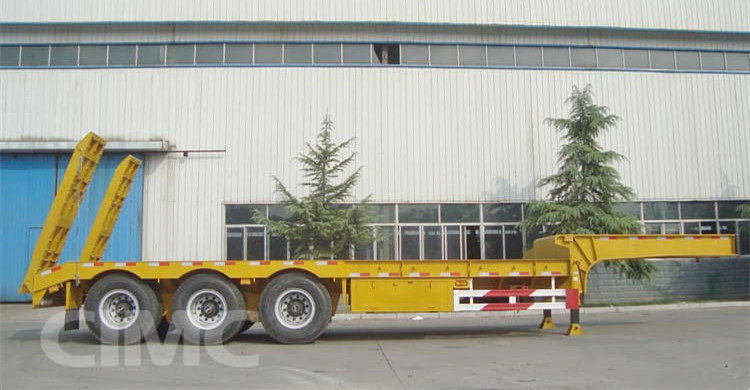

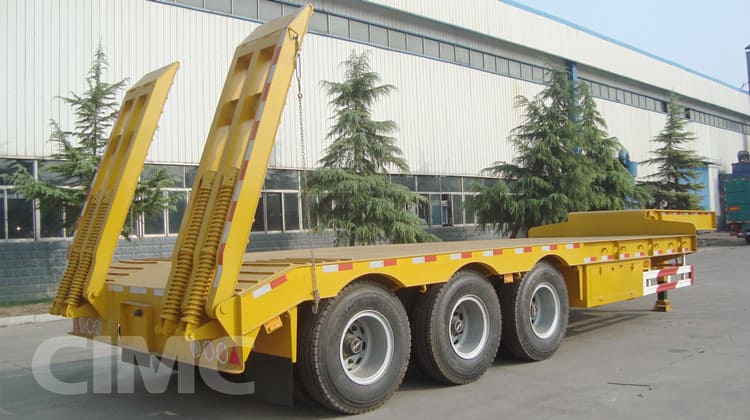

CIMC New 3 Axle 40 Ton Lowbed Truck Transport will be sent to Guyana
The semi-trailer frame is mainly composed of beam-welded I-beam, support beam, connecting beam, side beam, lock head, traction pin connection device, panel, etc.
1. The side beams are generally channel steel or bending parts. At present, most trailers use channel steel, and there will be more side beams for light body hanging bending parts, because the requirements for strength are not too large. The supporting beam is the through beam, and most of them are now W beams. CIMC adopts highly robust structure steel with tensile and high load capacity, 3 axle lowbed trailer can reach 80 ton loading capacity.
2. The traction pin is an important component that connects the lowbed for sale and the tractor and bears the traction force, and is connected to the traction seat. It is generally forged from steel with a chrome alloy structure. There are 50# traction pins and 90# traction pins for different cargo tonnage. Generally, it is limited to the total weight of the 50T trailer and the cargo. The 50# pin is used below 50T, and the 90# pin is used for the above 50T. If it is above 90T, the 90# traction pin is used for insurance. CIMC adopts 90(3.5inch)# bolted type traction pin.
3. The general lowbed lowbed truck trailer suspension adopts non-independent steel plate stamping type rigid suspension, which consists of tandem leaf springs and suspension supports, which are used to support the load and slow down the impact of the dynamic load of the vehicle. Due to the different uses of special vehicles, there are different requirements for the design of the suspension. There are four commonly used suspensions: tandem leaf spring balance suspension, single-point suspension, air suspension, and rigid suspension (one line and two axles). CIMC Heavy duty mechanical spring suspension for high loads requirements needs.

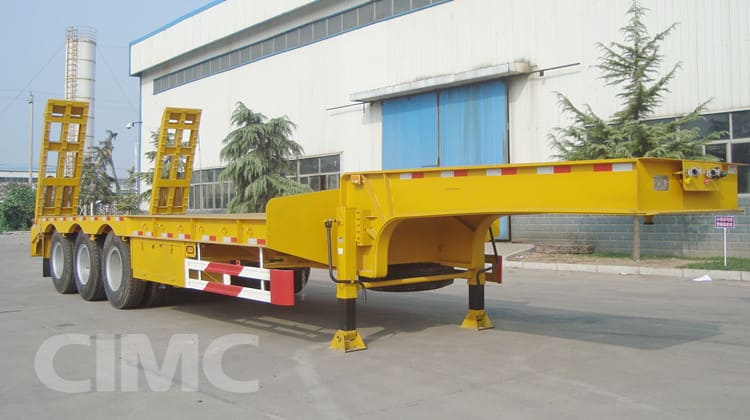

CIMC New 3 Axle 40 Ton Lowbed Transport Truck for Sale
4. The axle of the lowbed trailer truck is a supporting axle, and the axle is connected with the frame through the leaf spring and the tie rod and the suspension device to support and transmit the force of the load between the frame and the wheel. CIMC uses 3 axles, 13T/16T, FUWA / BPW / CIMC/Other Brand.
5. CIMC lower working platform height, working platform height from 850mm-1200mm. The lower the cargo bed, the more stable the trailer is on the road.
6. The electrical system of the lowbed for sale is composed of seven-core sockets, cables, air circuits, various lamps, etc., which are used for lighting, safety warnings, and air supply for brakes.
7. The supporting device of the excavator trailer is mainly used to support the lowbed trailer when it is detached, and is composed of outriggers, connecting brackets, etc.
8. The lowbed transport protection device consists of side protection and rear protection to protect pedestrians and other vehicles from getting under the lowbed. This thing is also fuel-efficient when it is done well, and it is called a side skirt when it is done to reduce the wind resistance.
9. Other accessories on the lowbed truck for sale include tool boxes, spare tire racks, gantry racks, stakes, etc. There are also some small accessories such as rope tighteners, rope hooks and other highly functional accessories.

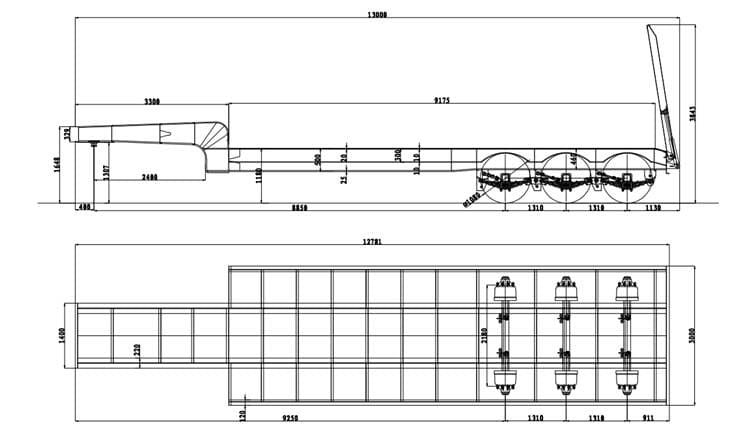

Drawing of CIMC New 3 Axle 40 Ton Lowbed Truck for Sale
